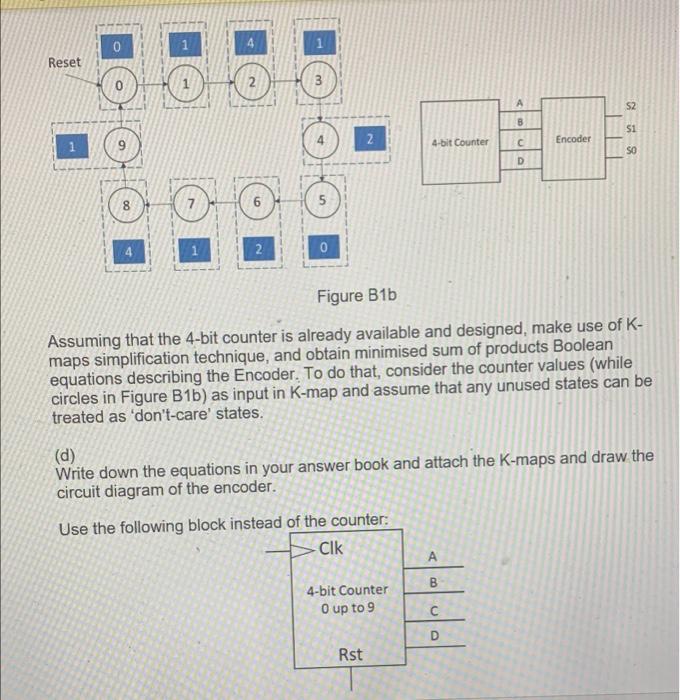

0 Reset 88 3 A S2 B S1 4-bit Counter 9 c Encoder SO D o 5 Figure B1b Assuming that the 4-bit counter is already available and designed, make use of K- maps simplification technique, and obtain minimised sum of products Boolean equations describing the Encoder. To do that, consider the counter values (while circles in Figure B1b) as input in K-map and assume that any unused states can be treated as 'don't care' states. (d) Write down the equations in your answer book and attach the K-maps and draw the circuit diagram of the encoder. Use the following block instead of the counter: Clk A B 4-bit Counter O up to 9 с D Rst
