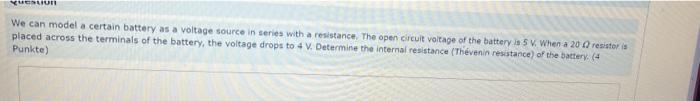

YULUN We can model a certain battery as a voltage source in series with a resistance. The open circuit voltage of the battery a 5 When a 20 resistoris placed across the terminals of the battery, the voltage drops to 4 V. Determine the internal resistance (Thevenin resistance of the battery (4 Punkte)

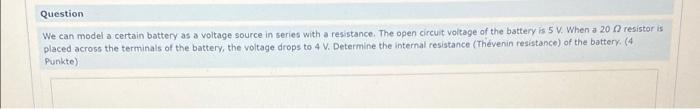

Question We can model a certain battery as a voltage source in series with a resistance. The open circuit voltage of the battery is 5 V. When a 20 resistor is placed across the terminals of the battery, the voltage drops to 4 V. Determine the internal resistance (Thévenin resistance) of the battery (4 Punkte)
