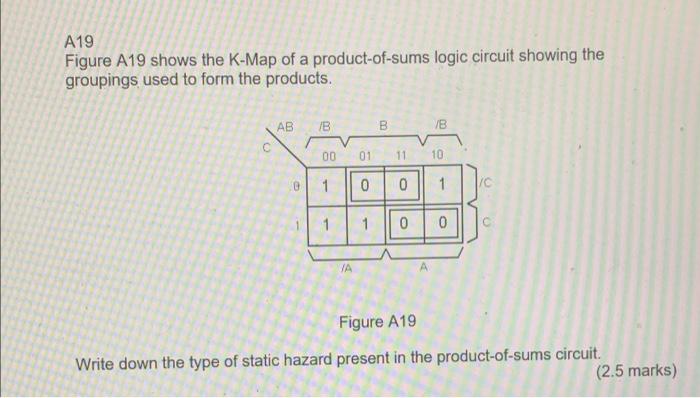

A19 Figure A19 shows the K-Map of a product-of-sums logic circuit showing the groupings used to form the products. AB /B

[answerhappygod]

A19 Figure A19 Shows The K Map Of A Product Of Sums Logic Circuit Showing The Groupings Used To Form The Products Ab B 1 (36.78 KiB) Viewed 52 times

A19 Figure A19 shows the K-Map of a product-of-sums logic circuit showing the groupings used to form the products. AB /B B /B 00 01 11 10 0 1 0 0 0 1 1/C 1 1 0 0 VA Figure A19 Write down the type of static hazard present in the product-of-sums circuit. (2.5 marks)
