A17 Write down the bit pattern to apply to in order to transfer the 'Data_in' source to the 'Data out

Post by answerhappygod »

A17 Write Down The Bit Pattern To Apply To A B C D E F In Order To Transfer The Data In Source To The Data Out 1
A17 Write Down The Bit Pattern To Apply To A B C D E F In Order To Transfer The Data In Source To The Data Out 1 (38.1 KiB) Viewed 70 times

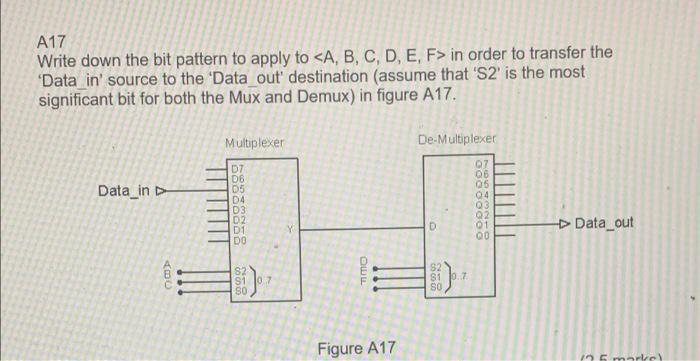

A17 Write down the bit pattern to apply to <A, B, C, D, E, F> in order to transfer the 'Data_in' source to the 'Data out' destination (assume that 'S2' is the most significant bit for both the Mux and Demux) in figure A17. Multiplexer De-Multiplexer וס Data_in D6 D5 D4 D3 06 05 04 OOOOOOOO 02 D 01 00 O-NW D1 DO Data_out 00) 82 S1 10 SO doland TTITTO Si 0.7 SO Figure A17 mare)
