A11 Given the timing waveforms shown in Fig. A11, write down the Verilog-HDL primitive gate instance that produces outpu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A11 Given the timing waveforms shown in Fig. A11, write down the Verilog-HDL primitive gate instance that produces outpu

Post by answerhappygod »

A11 Given The Timing Waveforms Shown In Fig A11 Write Down The Verilog Hdl Primitive Gate Instance That Produces Outpu 1
A11 Given The Timing Waveforms Shown In Fig A11 Write Down The Verilog Hdl Primitive Gate Instance That Produces Outpu 1 (31.4 KiB) Viewed 53 times

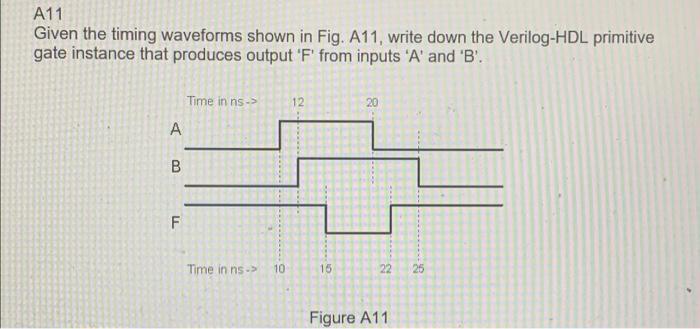

A11 Given the timing waveforms shown in Fig. A11, write down the Verilog-HDL primitive gate instance that produces output 'F' from inputs 'A' and 'B'. 12 20 Time in ns-> А B F Time in ns-> 10 15 22 25 Figure A11
