A10 Write down the sequence of states in decimal produced by the circuit of figure A10, assuming it starts in state

Post by answerhappygod »

A10 Write Down The Sequence Of States In Decimal Produced By The Circuit Of Figure A10 Assuming It Starts In State Q2 1
A10 Write Down The Sequence Of States In Decimal Produced By The Circuit Of Figure A10 Assuming It Starts In State Q2 1 (50.94 KiB) Viewed 61 times

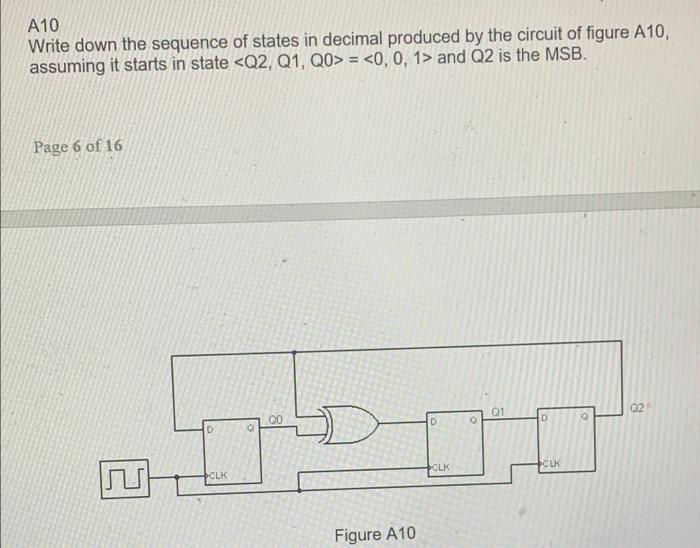

A10 Write down the sequence of states in decimal produced by the circuit of figure A10, assuming it starts in state <Q2, Q1, QO> = <0, 0, 1> and Q2 is the MSB. Page 6 of 16 01 02 Q0 D D CLK PCUK CLK Figure A10
