A7 Figure A7 shows a multiplexer being used to implement a combinational logic function. Given that select input 'S2' is

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A7 Figure A7 shows a multiplexer being used to implement a combinational logic function. Given that select input 'S2' is

Post by answerhappygod »

A7 Figure A7 Shows A Multiplexer Being Used To Implement A Combinational Logic Function Given That Select Input S2 Is 1
A7 Figure A7 Shows A Multiplexer Being Used To Implement A Combinational Logic Function Given That Select Input S2 Is 1 (33.75 KiB) Viewed 52 times

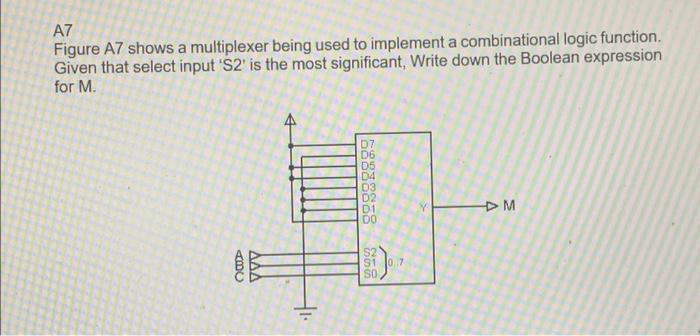

A7 Figure A7 shows a multiplexer being used to implement a combinational logic function. Given that select input 'S2' is the most significant, Write down the Boolean expression for M. D6 D5 D4 8-130 Les D2 HTM CA COU 51 10.7 SO
