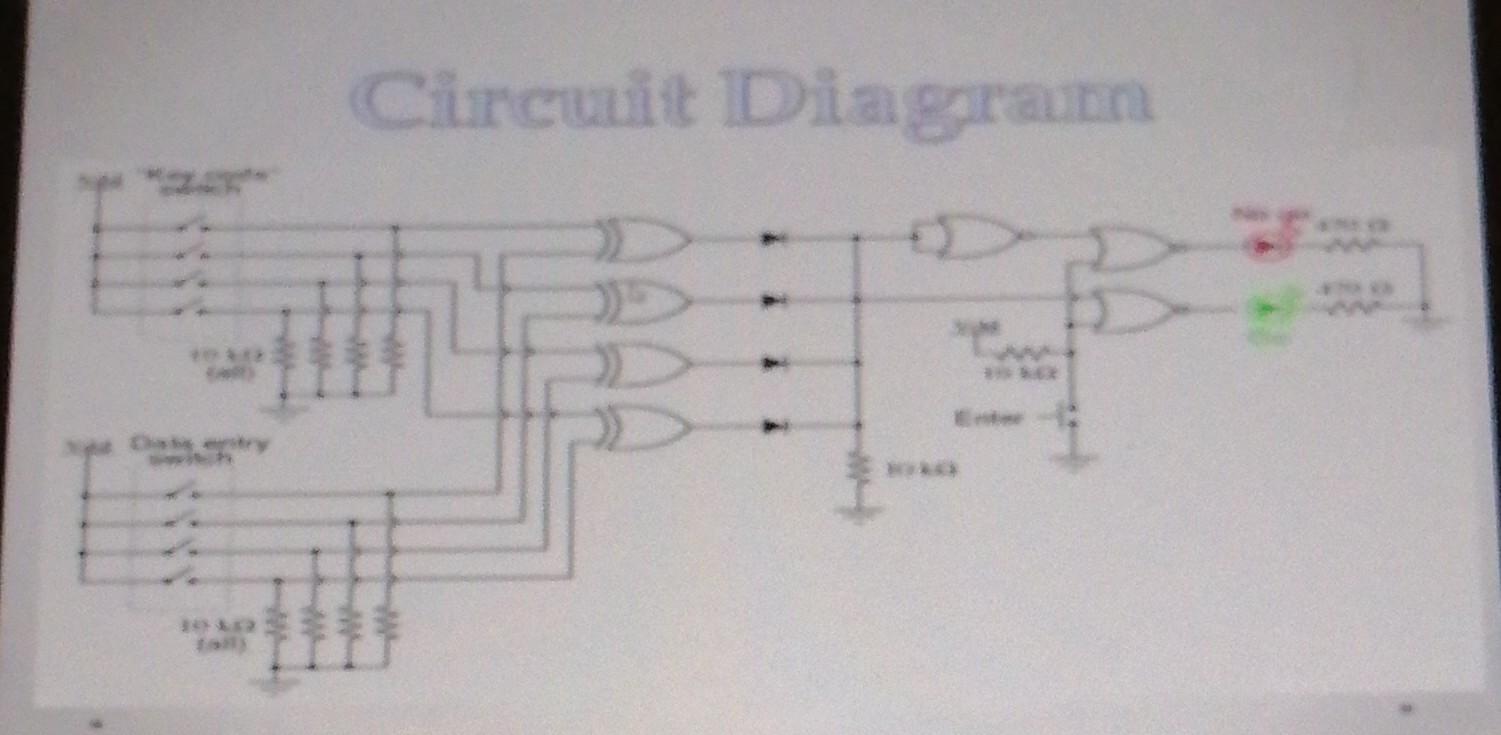

Circuit Diagram B Cory Circuit Diagram Va Kay Code Switch 470 10 33 Enter Vald Data Entry Switch 32 10 Ks 1 (79.85 KiB) Viewed 64 times
The gates used here are Xnor and Nor respectively, please derive the truth table behind it and a little explanation about the circuit, this is the circuit of a password security system link to the source
Simulate this circuit on bread board. The gates used are Xor, Nor respectively.

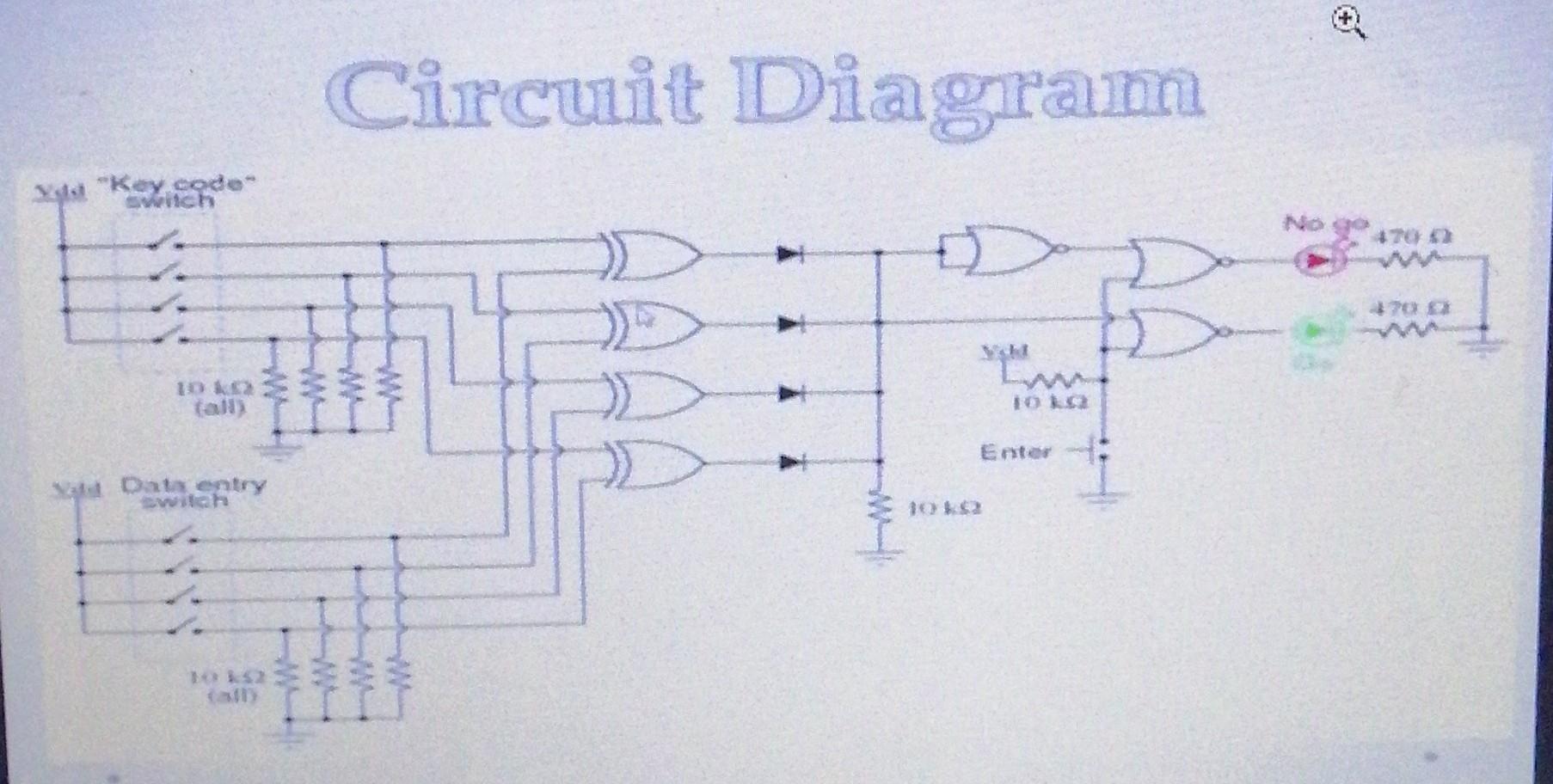

Circuit Diagram B Cory Circuit Diagram Va Kay Code Switch 470 10 33 Enter Vald Data Entry Switch 32 10 Ks 2 (164.01 KiB) Viewed 64 times
Circuit Diagram B Cory
+ Circuit Diagram va "Kay code switch 470 10 33 Enter : Vald Data entry switch 32 10 ks
