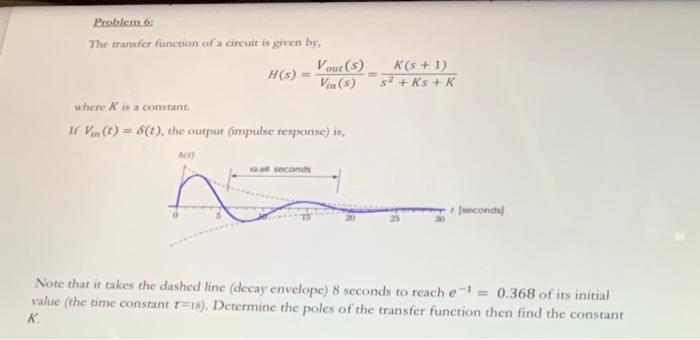

Problem The transfer function of a circuit is given by, Voue(s) H($) Vin(S) K(5 + 1) S? + K +K where is a constant If V (i) = S(6), the output (impulse response) is, seconds seconds Note that it takes the dashed line decay envelope) 8 seconds to reach e-I = 0.368 of its initial value the time constant T=18). Determine the poles of the transfer function then find the constant K

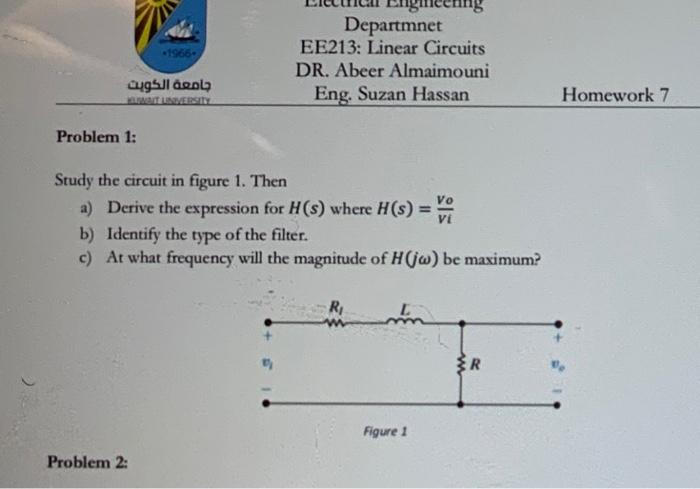

Departmnet EE213: Linear Circuits DR. Abeer Almaimouni Eng. Suzan Hassan جامعة الكويت Homework 7 Problem 1: Study the circuit in figure 1. Then a) Derive the expression for H(s) where H(s) = b) Identify the type of the filter. c) At what frequency will the magnitude of H(jw) be maximum? = VE R BR Figure 1 Problem 2:
