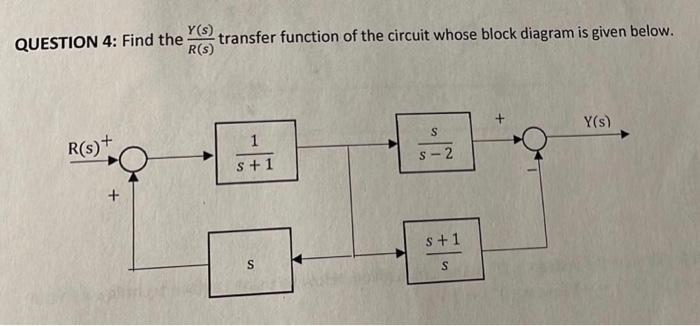

Y(s) QUESTION 4: Find the transfer function of the circuit whose block diagram is given below. R(S) Y(s) S R(s) + 1 S +1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Y(s) QUESTION 4: Find the transfer function of the circuit whose block diagram is given below. R(S) Y(s) S R(s) + 1 S +1

Post by answerhappygod »

Y S Question 4 Find The Transfer Function Of The Circuit Whose Block Diagram Is Given Below R S Y S S R S 1 S 1 1
Y S Question 4 Find The Transfer Function Of The Circuit Whose Block Diagram Is Given Below R S Y S S R S 1 S 1 1 (28.19 KiB) Viewed 43 times
Y(s) QUESTION 4: Find the transfer function of the circuit whose block diagram is given below. R(S) Y(s) S R(s) + 1 S +1 S-2 + s +1 S S
