Q10) For the circuit given below determine the state of each diode name the function of the cincaid, and in the output voltage Solution : 12V VCC R1 9k D1 2V 1N916A D2 OV 1N916A D3 12V 1N916A

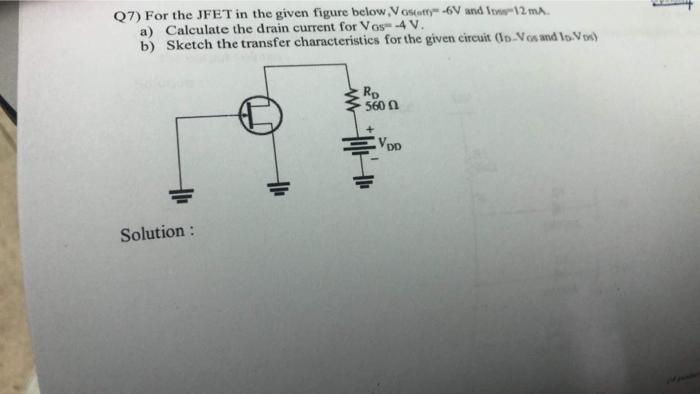

Q7) For the JFET in the given figure below. Vost-6V and 12 mA. a) Calculate the drain current for Vos -4V. b) Sketch the transfer characteristics for the given circuit (o Nos and lot.) Ro 5600 Voo = Solution :
