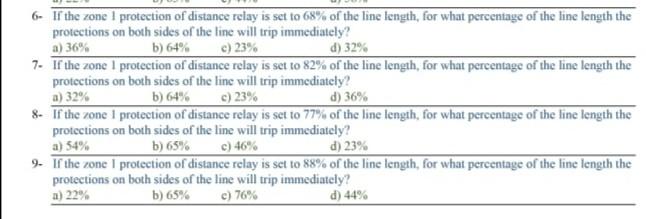

6- If the zone 1 protection of distance relay is set to 68% of the line length, for what percentage of the line length the protections on both sides of the line will trip immediately? a) 36% b) 64% c) 23% d) 32% 7. If the zone 1 1 protection of distance relay is set to 82% of the line length, for what percentage of the line length the protections on both sides of the line will trip immediately? a) 32% b) 64% c) 23% d) 36% & If the zone 1 protection of distance relay is set to 77% of the line length, for what percentage of the line length the protections on both sides of the line will trip immediately? a) 54% b) 65% c) 46% d) 23% 9. If the zone I protection of distance relay is set to 88% of the line length, for what percentage of the line length the protections on both sides of the line will trip immediately? a) 22% b) 65% c) 76% d) 44%
