QUESTION 3: ABCD parameters of the two-port A, shown in the figure below is given as TA = CS = 1 Find, (a) The ABCD para

[answerhappygod]

Question 3 Abcd Parameters Of The Two Port A Shown In The Figure Below Is Given As Ta Cs 1 Find A The Abcd Para 1 (51.32 KiB) Viewed 64 times

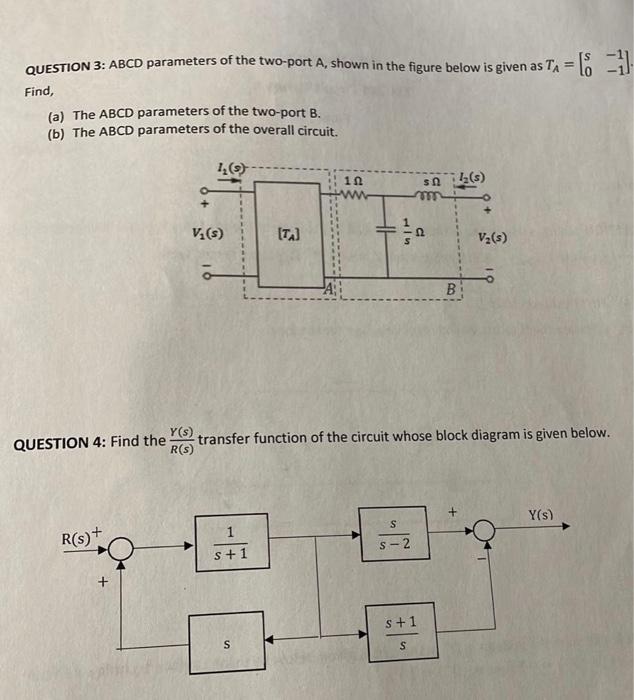

QUESTION 3: ABCD parameters of the two-port A, shown in the figure below is given as TA = CS = 1 Find, (a) The ABCD parameters of the two-port B. (b) The ABCD parameters of the overall circuit. 1,5) 1Ω Sn (s) + V.3) [T] Vz(s) B Y(s) QUESTION 4: Find the transfer function of the circuit whose block diagram is given below. R(S) Y(s) R(s) + 1 s +1 s-2 + $ + 1 S S
