1. What is influence lines in structural analysis? How to draw influence line diagram using Muller Breslau principle? 2.

Post by correctanswer »

1 What Is Influence Lines In Structural Analysis How To Draw Influence Line Diagram Using Muller Breslau Principle 2 1
1 What Is Influence Lines In Structural Analysis How To Draw Influence Line Diagram Using Muller Breslau Principle 2 1 (54 KiB) Viewed 21 times

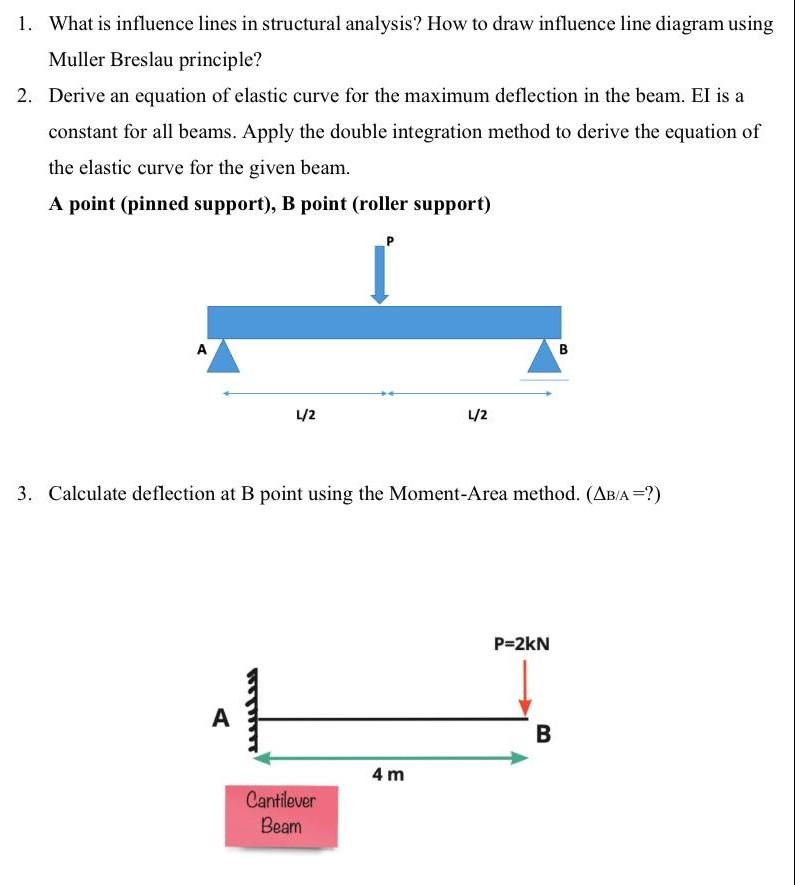

1. What is influence lines in structural analysis? How to draw influence line diagram using Muller Breslau principle? 2. Derive an equation of elastic curve for the maximum deflection in the beam. EI is a constant for all beams. Apply the double integration method to derive the equation of the elastic curve for the given beam. A point (pinned support), B point (roller support) A B L/2 L/2 3. Calculate deflection at B point using the Moment-Area method. (AB/A=?) P=2kN B A Cantilever Beam 4 m
