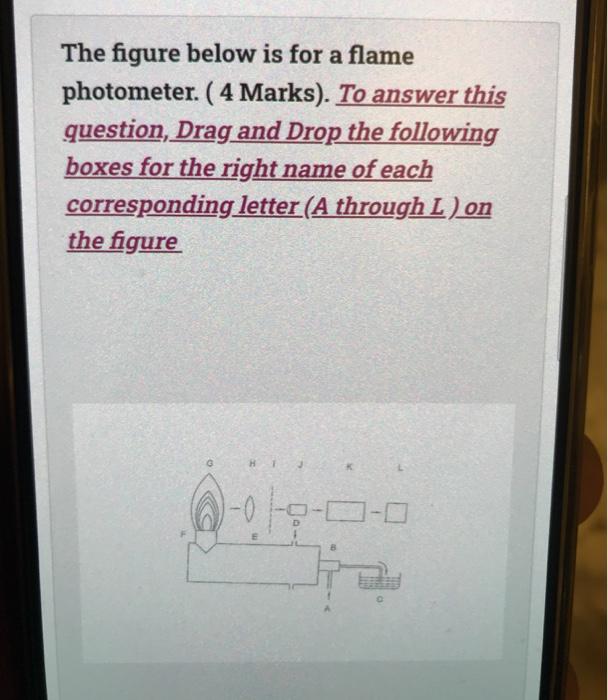

The figure below is for a flame photometer. ( 4 Marks). To answer this question, Drag and Drop the following boxes for the right name of each corresponding letter (A through L) on the figure G HT * -0 B

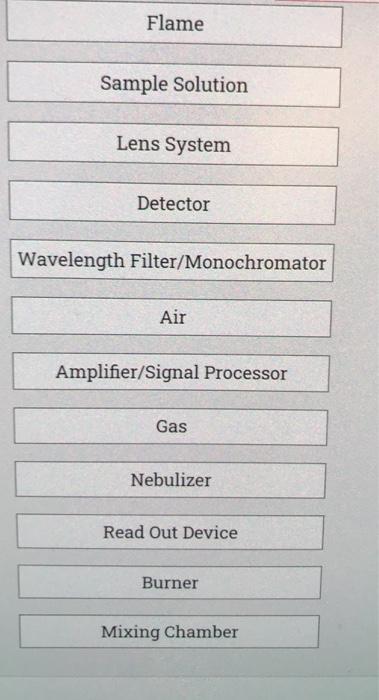

A: B: Time left 0.25:15 C: D: E: G: I: J: Flame Sample Solution Lens System Detector Wavelength Filter/Monochromator Air Amplifier/Signal Processor Gas Nebulizer
Flame Sample Solution Lens System Detector Wavelength Filter/Monochromator Air Amplifier/Signal Processor Gas Nebulizer Read Out Device Burner Mixing Chamber
