GENERAL DIRECTIONS: Copy and answer the following items indicated with complete solutions. Do not attach this questionna

[correctanswer]

General Directions Copy And Answer The Following Items Indicated With Complete Solutions Do Not Attach This Questionna 1 (72.71 KiB) Viewed 71 times

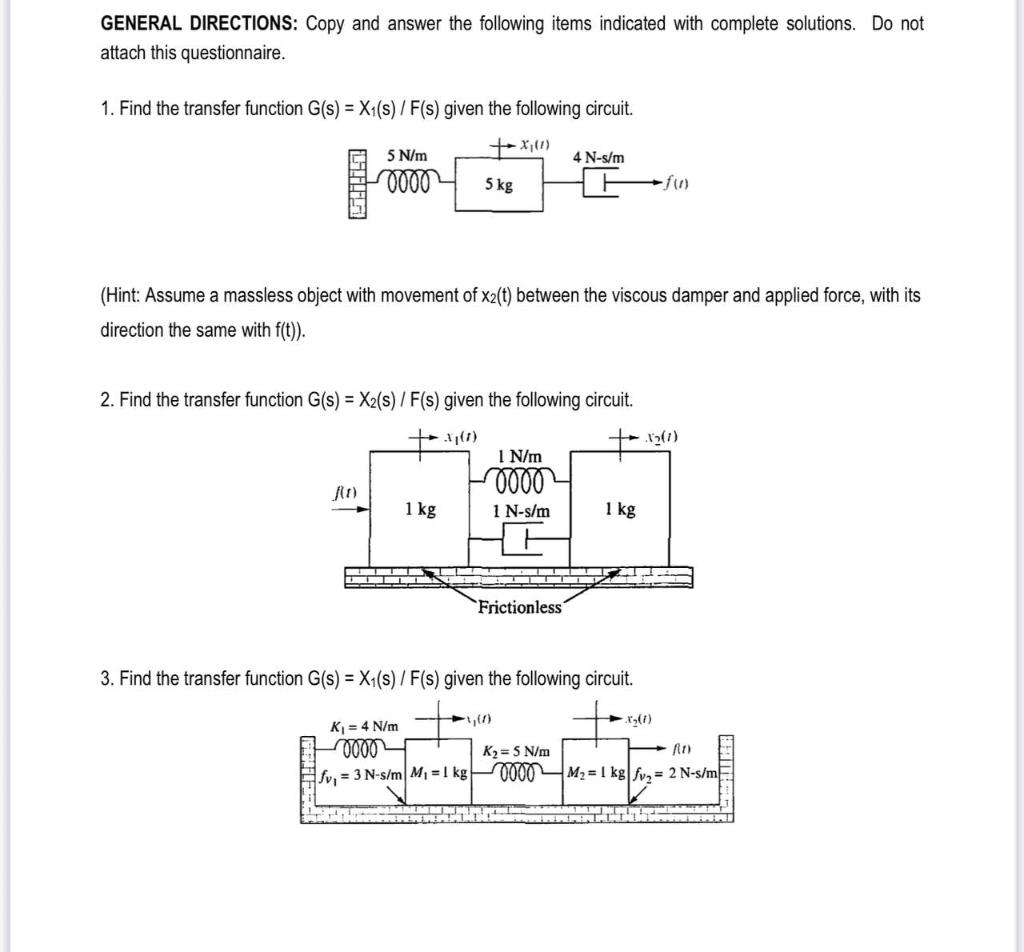

GENERAL DIRECTIONS: Copy and answer the following items indicated with complete solutions. Do not attach this questionnaire. 1. Find the transfer function G(s) = X₁(s) / F(s) given the following circuit. 5 N/m 4 N-s/m I ++ X₁ (1) 5 kg 0000 -fin (Hint: Assume a massless object with movement of x2(t) between the viscous damper and applied force, with its direction the same with f(t)). 2. Find the transfer function G(s) = X2(s) / F(s) given the following circuit. +3₁ (1) + 1₂ (1) 1 N/m oooo f(t) 1 kg 1 N-s/m ▬▬▬▬▬ ▬▬▬▬▬▬ Frictionless 3. Find the transfer function G(s) = X₁(s)/ F(s) given the following circuit. 1,(1) X₂(1) K₁ = 4 N/m 0000 RD K₂=5 N/m 0000 fv₁ = 3 N-s/m| M₁ = 1 kg| M₂= 1 kg|fv₂= 2 N-s/m 1 kg
