Q8: A synchronous finite state machine (FSM) whose output is the sequence 0,1,2,3,4,5,0,... The machine is controlled by

[correctanswer]

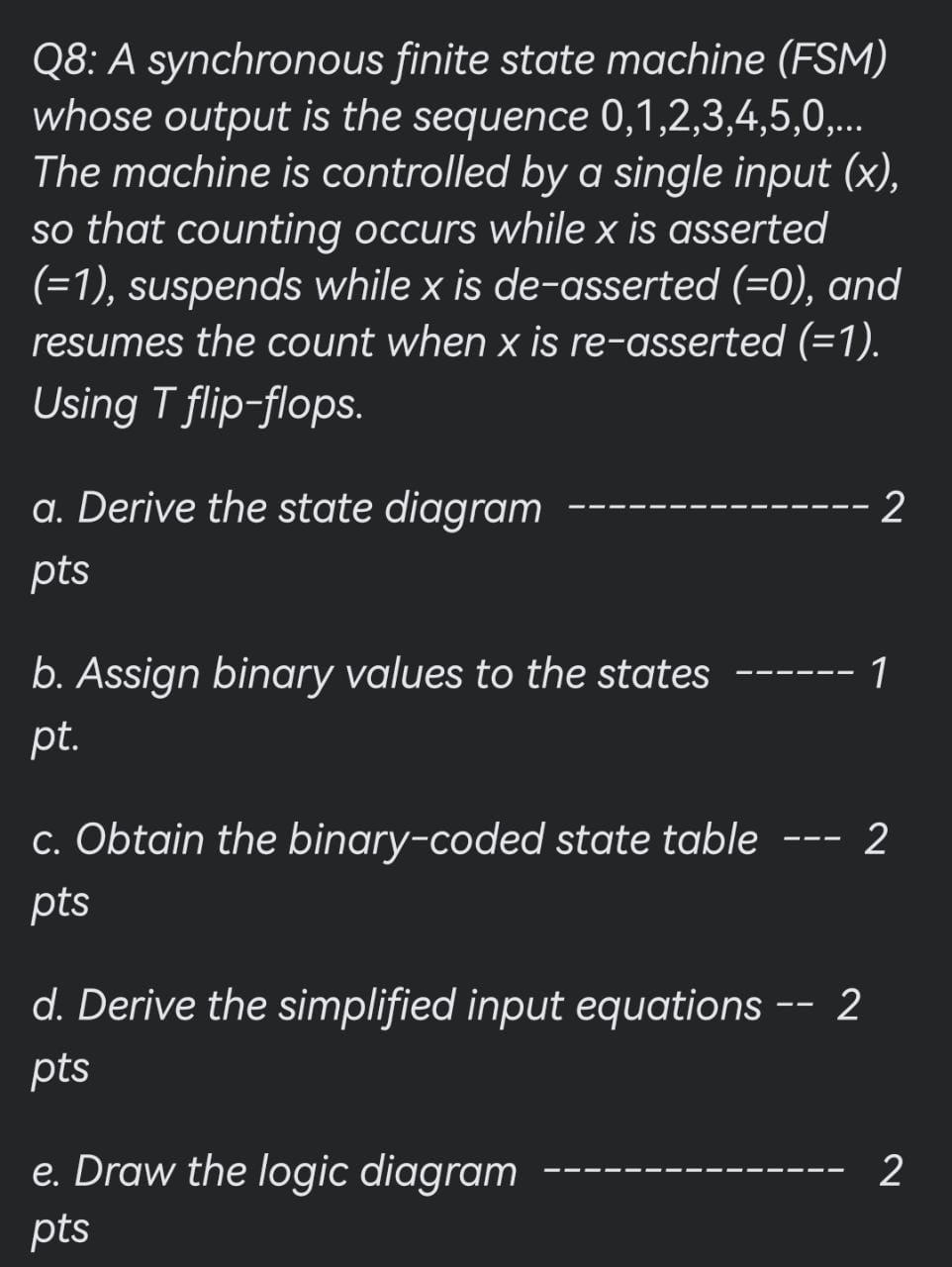

Q8 A Synchronous Finite State Machine Fsm Whose Output Is The Sequence 0 1 2 3 4 5 0 The Machine Is Controlled By 1 (101.19 KiB) Viewed 82 times

Q8: A synchronous finite state machine (FSM) whose output is the sequence 0,1,2,3,4,5,0,... The machine is controlled by a single input (x), so that counting occurs while x is asserted (=1), suspends while x is de-asserted (=0), and resumes the count when x is re-asserted (=1). Using T flip-flops. a. Derive the state diagram 2 pts b. Assign binary values to the states pt. c. Obtain the binary-coded state table pts d. Derive the simplified input equations pts e. Draw the logic diagram pts ——— - 1 2 2 2
