The circuit shown is used to produce a current-voltage graph for a 12 V, 24 W bulb. 20 V RO 2402 Show on a copy of the d

Post by correctanswer »

The Circuit Shown Is Used To Produce A Current Voltage Graph For A 12 V 24 W Bulb 20 V Ro 2402 Show On A Copy Of The D 1
The Circuit Shown Is Used To Produce A Current Voltage Graph For A 12 V 24 W Bulb 20 V Ro 2402 Show On A Copy Of The D 1 (29.13 KiB) Viewed 100 times

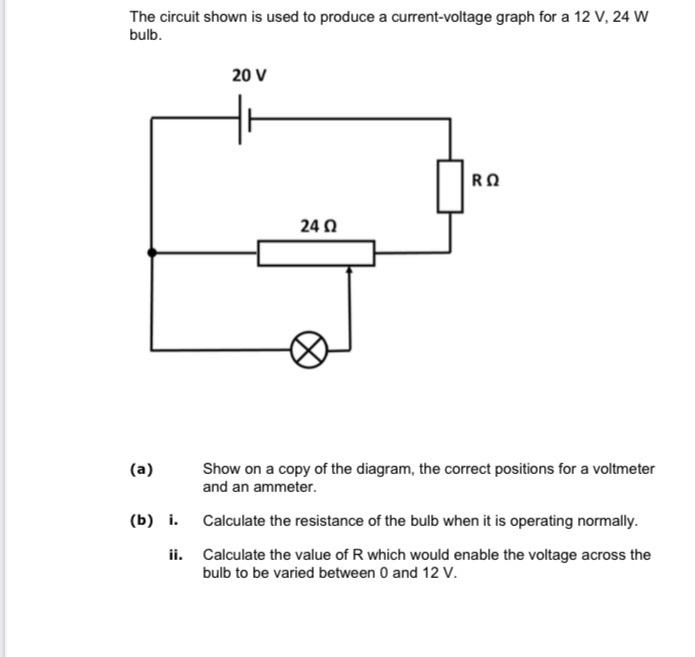

The circuit shown is used to produce a current-voltage graph for a 12 V, 24 W bulb. 20 V RO 2402 Show on a copy of the diagram, the correct positions for a voltmeter and an ammeter. Calculate the resistance of the bulb when it is operating normally. ii. Calculate the value of R which would enable the voltage across the bulb to be varied between 0 and 12 V. (a) (b) i.
