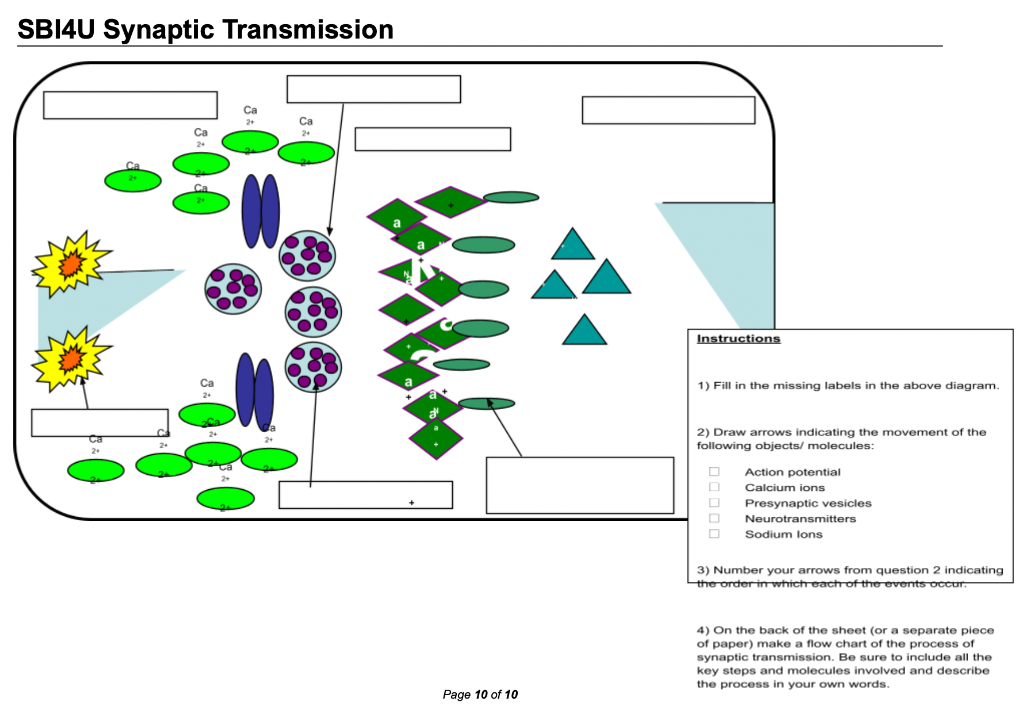

SBI4U Synaptic Transmission 2+ Ca 2+ Page 10 of 10 Instructions 1) Fill in the missing labels in the above diagram. 2) Draw arrows indicating the movement of the following objects/ molecules: 0 Action potential 0 Calcium ions Presynaptic vesicles Neurotransmitters O 0 Sodium lons 3) Number your arrows from question 2 indicating the order in which each of the events occur 4) On the back of the sheet (or a separate piece of paper) make a flow chart of the process of synaptic transmission. Be sure to include all the key steps and molecules involved and describe the process in your own words.
