A block that is 5 m wide and .5 m tall is subjected to three forces and a moment as shown in Figure 2. The forces have m

[answerhappygod]

A Block That Is 5 M Wide And 5 M Tall Is Subjected To Three Forces And A Moment As Shown In Figure 2 The Forces Have M 1 (69.85 KiB) Viewed 401 times

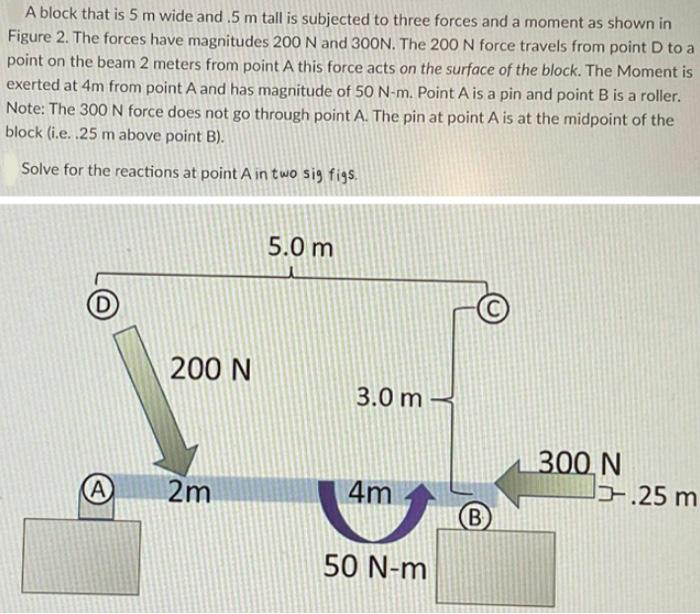

A block that is 5 m wide and .5 m tall is subjected to three forces and a moment as shown in Figure 2. The forces have magnitudes 200 N and 300N. The 200 N force travels from point D to a point on the beam 2 meters from point A this force acts on the surface of the block. The Moment is exerted at 4m from point A and has magnitude of 50 N-m. Point A is a pin and point B is a roller. Note: The 300 N force does not go through point A. The pin at point A is at the midpoint of the block (i.e..25 m above point B). Solve for the reactions at point A in two sig figs. 5.0 m D 300 N (A) 200 N 2m 3.0 m 4m 50 N-m (B .25 m
