Problem 10.57 Consider the circuit shown in (Figure 1). Suppose that Vs = 230/0° V (rms). The 9 resistor is replaced wit

[answerhappygod]

Problem 10 57 Consider The Circuit Shown In Figure 1 Suppose That Vs 230 0 V Rms The 9 Resistor Is Replaced Wit 1 (65.87 KiB) Viewed 175 times

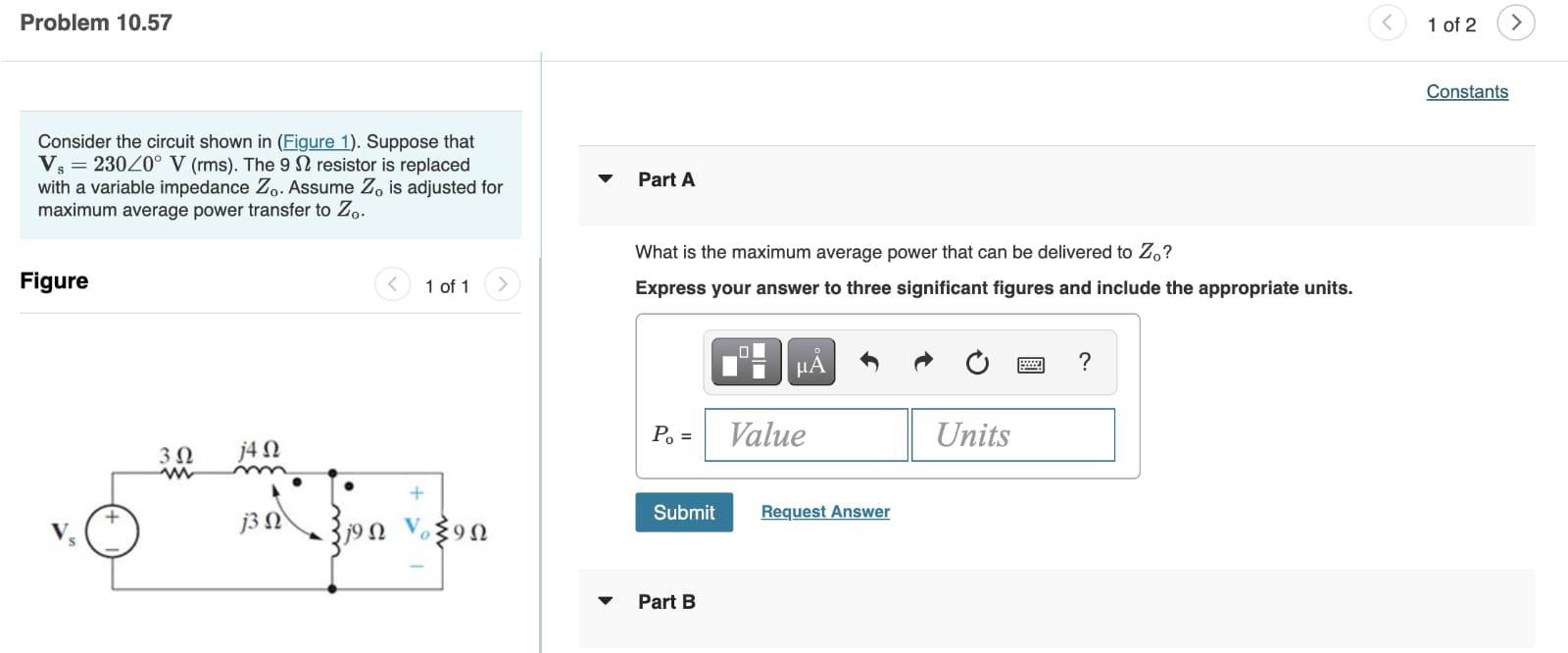

Problem 10.57 Consider the circuit shown in (Figure 1). Suppose that Vs = 230/0° V (rms). The 9 resistor is replaced with a variable impedance Zo. Assume Zo is adjusted for maximum average power transfer to Zo. Figure 1 of 1 j4 N + 13 Ω Kuna vit Vs j9 Q 3 Ω www 92 ▼ Part A What is the maximum average power that can be delivered to Zo? Express your answer to three significant figures and include the appropriate units. 01 μA ? P₁ = Value Units Submit Part B Request Answer 1 of 2 Constants >
