3. A uniform beam of length 2.5 m is hinged at its bottom end. Its top end is held in place by a horizontal cable of ten
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
3. A uniform beam of length 2.5 m is hinged at its bottom end. Its top end is held in place by a horizontal cable of ten

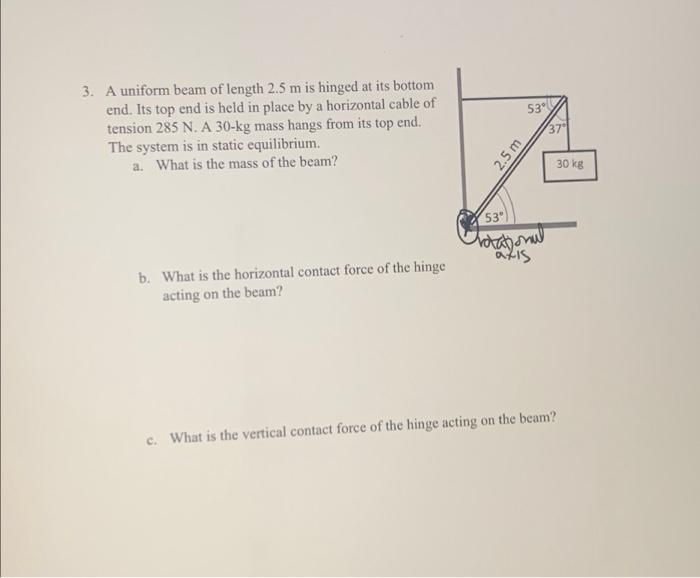

3. A uniform beam of length 2.5 m is hinged at its bottom end. Its top end is held in place by a horizontal cable of tension 285 N. A 30-kg mass hangs from its top end. The system is in static equilibrium. a. What is the mass of the beam? 53⁰ Chotational axis b. What is the horizontal contact force of the hinge acting on the beam? c. What is the vertical contact force of the hinge acting on the beam? 53 2.5 m 37 30 kg
