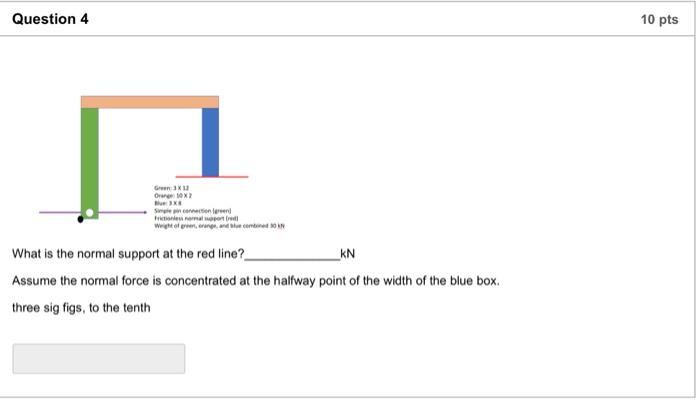

Question 4 Gree3X1J Orang 10x2 Simple in connection green Frictiones normal support ( Weight of green, orange, and sue combined 30 What is the normal support at the red line? KN Assume the normal force is concentrated at the halfway point of the width of the blue box. three sig figs, to the tenth 10 pts Question 5 What is the vertical reaction at the pin? three sig figs, to the tenth KN 10 pts
