In the wire shown in (Eigure 1) segment BC is an arc of a circle with radius 30.0 cm, and point P is at the center of cu

[answerhappygod]

In The Wire Shown In Eigure 1 Segment Bc Is An Arc Of A Circle With Radius 30 0 Cm And Point P Is At The Center Of Cu 1 (23.34 KiB) Viewed 254 times

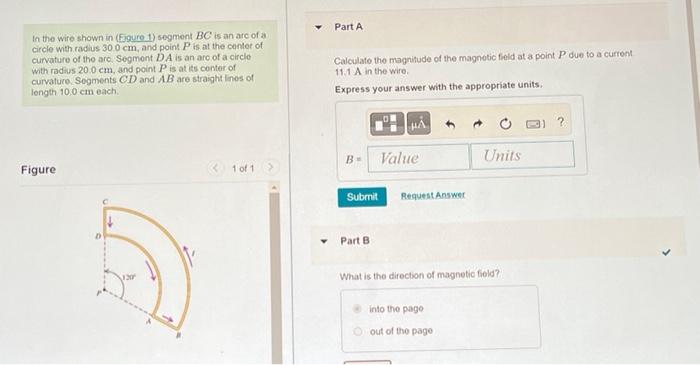

In the wire shown in (Eigure 1) segment BC is an arc of a circle with radius 30.0 cm, and point P is at the center of curvature of the arc. Segment DA is an arc of a circle with radius 20.0 cm, and point P is at its conter of curvature, Segments CD and AB are straight lines of length 10.0 cm each. Figure 1 of 1 Y Part A Calculate the magnitude of the magnetic field at a point P due to a current 11.1 A in the wire. Express your answer with the appropriate units. HA B= Value Units Submit Request Answer Part B What is the direction of magnetic field? into the page out of the page ?
