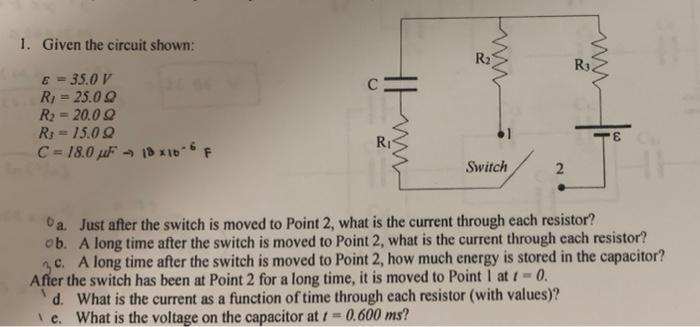

C 1. Given the circuit shown: € = 35.0 V R₁ = 25.09 R₂=20.0 2 R₁ =15.0Q R₁ C=18.0μF 18x10-6 F J₁₁ Switch 2 Da. Just after the switch is moved to Point 2, what is the current through each resistor? ob. A long time after the switch is moved to Point 2, what is the current through each resistor? 3c. A long time after the switch is moved to Point 2, how much energy is stored in the capacitor? After the switch has been at Point 2 for a long time, it is moved to Point 1 at = ¹0. d. What is the current as a function of time through each resistor (with values)? e. What is the voltage on the capacitor at /== 0.600 ms? 2 ww R3.
