In the figure below some output characteristics (Ic as a function of VCE) are shown of a bipolar p-n-p transistor. (1) I

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

In the figure below some output characteristics (Ic as a function of VCE) are shown of a bipolar p-n-p transistor. (1) I

Post by answerhappygod »

In The Figure Below Some Output Characteristics Ic As A Function Of Vce Are Shown Of A Bipolar P N P Transistor 1 I 1
In The Figure Below Some Output Characteristics Ic As A Function Of Vce Are Shown Of A Bipolar P N P Transistor 1 I 1 (41.03 KiB) Viewed 317 times

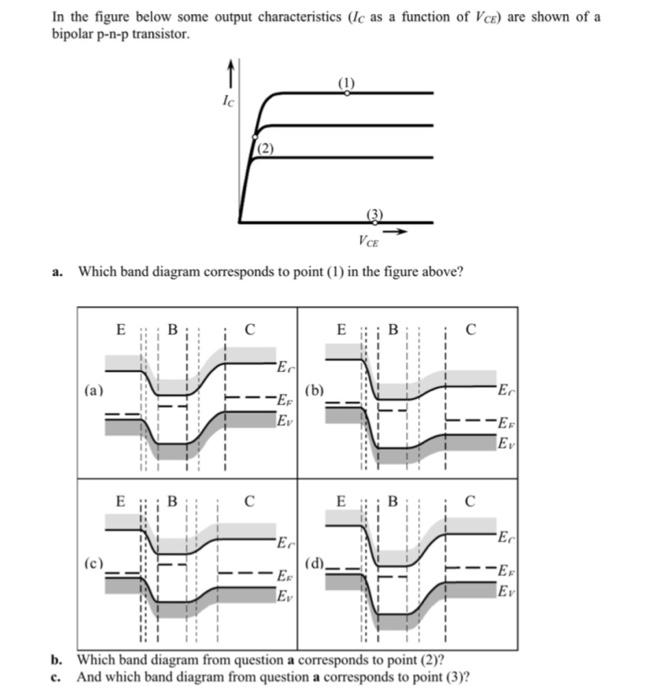

In the figure below some output characteristics (Ic as a function of VCE) are shown of a bipolar p-n-p transistor. (1) Ic (3) VCE a. Which band diagram corresponds to point (1) in the figure above? E E Er EF Ev (a) E C Er Er (b) E (d), C (c) Ev b. Which band diagram from question a corresponds to point (2)? C. And which band diagram from question a corresponds to point (3)? Er EF Ev Ec EF Ev 33
