3) A point mass is attached to one end of a beam levered against a spike which acts as the pivot. The point mass weighs

[answerhappygod]

3 A Point Mass Is Attached To One End Of A Beam Levered Against A Spike Which Acts As The Pivot The Point Mass Weighs 1 (56.27 KiB) Viewed 167 times

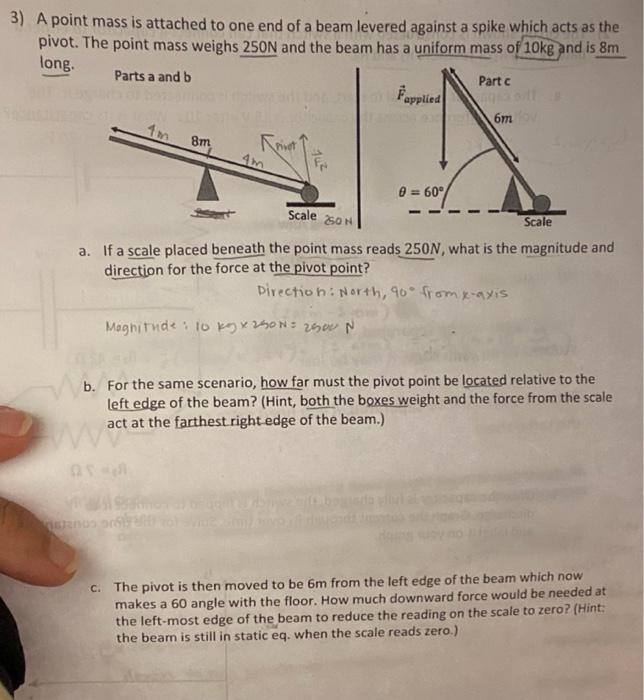

3) A point mass is attached to one end of a beam levered against a spike which acts as the pivot. The point mass weighs 250N and the beam has a uniform mass of 10kg and is 8m long. Parts a and b Part c Fapplied 3 of 6mov 1m 8m Krit 0 = 60° Scale 250 N Scale a. If a scale placed beneath the point mass reads 250N, what is the magnitude and direction for the force at the pivot point? Direction: North, 90° from x-axis Magnitude: 10 x 250N = 2500 N b. For the same scenario, how far must the pivot point be located relative to the left edge of the beam? (Hint, both the boxes weight and the force from the scale act at the farthest right edge of the beam.) wata ar 0672nos onl c. The pivot is then moved to be 6m from the left edge of the beam which now makes a 60 angle with the floor. How much downward force would be needed at the left-most edge of the beam to reduce the reading on the scale to zero? (Hint: the beam is still in static eq. when the scale reads zero.)
