1. The figure below shows two metal shapes that are immersed in the rectangular, shallow tub of water (just like in the

[answerhappygod]

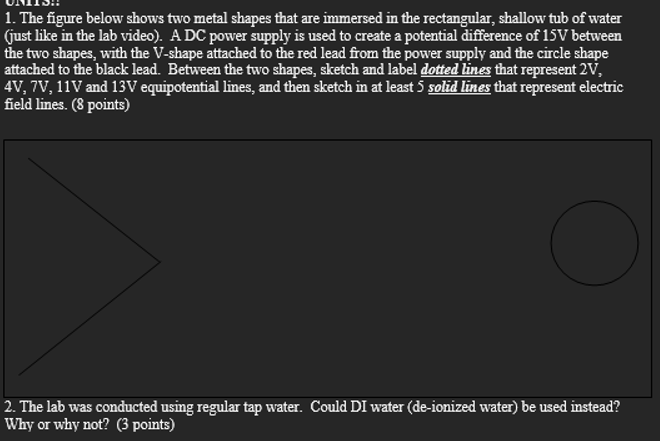

1 The Figure Below Shows Two Metal Shapes That Are Immersed In The Rectangular Shallow Tub Of Water Just Like In The 1 (77.43 KiB) Viewed 205 times

1. The figure below shows two metal shapes that are immersed in the rectangular, shallow tub of water (just like in the lab video). A DC power supply is used to create a potential difference of 15V between the two shapes, with the V-shape attached to the red lead from the power supply and the circle shape attached to the black lead. Between the two shapes, sketch and label dotted lines that represent 2V, 4V, 7V, 11V and 13V equipotential lines, and then sketch in at least 5 solid lines that represent electric field lines. (8 points) 2. The lab was conducted using regular tap water. Could DI water (de-ionized water) be used instead? Why or why not? (3 points)
