Problem 4: A cord is wrapped around each of the two disks A and B with masses of me and mg respectively. They are curren

[answerhappygod]

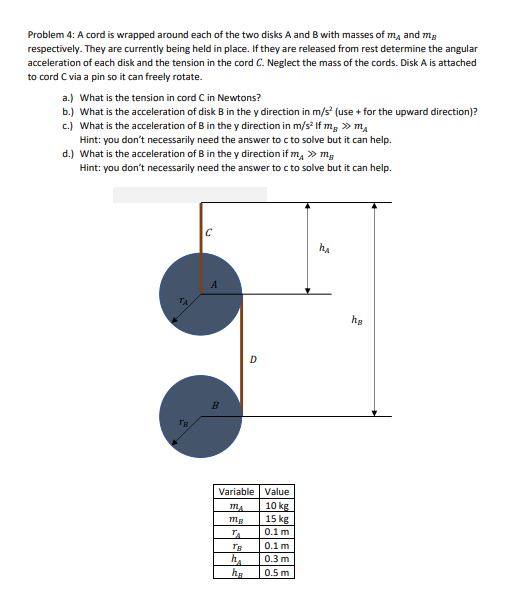

Problem 4 A Cord Is Wrapped Around Each Of The Two Disks A And B With Masses Of Me And Mg Respectively They Are Curren 1 (43.46 KiB) Viewed 104 times

Problem 4: A cord is wrapped around each of the two disks A and B with masses of me and mg respectively. They are currently being held in place. If they are released from rest determine the angular acceleration of each disk and the tension in the cord C. Neglect the mass of the cords. Disk A is attached to cord C via a pin so it can freely rotate. a.) What is the tension in cord C in Newtons? b.) What is the acceleration of disk B in the y direction in m/s² (use + for the upward direction)? c.) What is the acceleration of B in the y direction in m/s² If m₂ >> MA Hint: you don't necessarily need the answer to c to solve but it can help. d.) What is the acceleration of B in the y direction if m₂ » mg Hint: you don't necessarily need the answer to c to solve but it can help. с ha TB. D Variable Value MA 10 kg m₂ 15 kg TA 0.1 m TB 0.1 m ha 0.3 m h₂ 0.5 m ha
