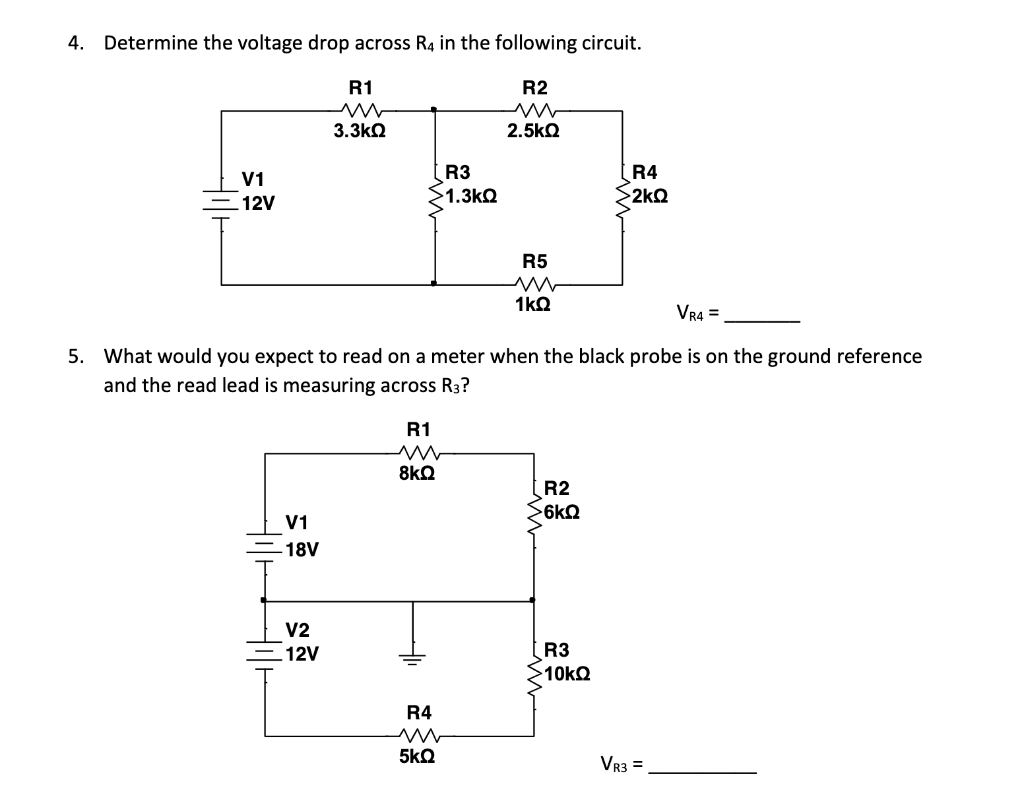

4. Determine the voltage drop across R4 in the following circuit. R2 R1 w 3.3ΚΩ 2.5ΚΩ R3 R4 V1 12V 1.3ΚΩ >2kQ 1kQ VR4 =
-
