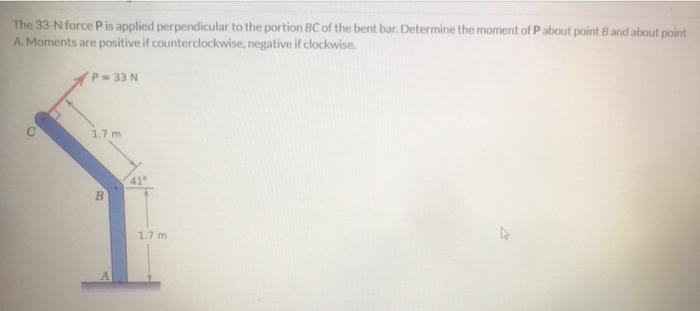

The 33-N force P is applied perpendicular to the portion BC of the bent bar. Determine the moment of P about point B and about point A. Moments are positive if counterclockwise, negative if clockwise. P = 33 N 1.7 m 41° 1.7 m
Answers: MB = MA= wpid i N-m N•m
