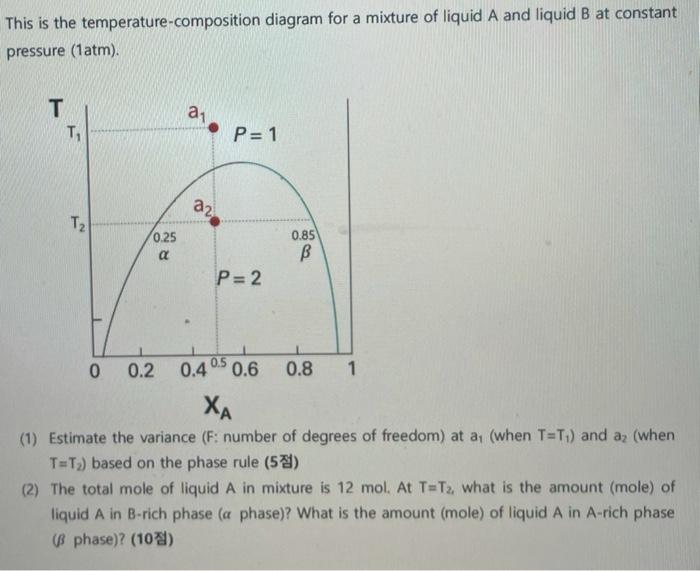

This is the temperature-composition diagram for a mixture of liquid A and liquid B at constant pressure (1atm). T a₁ P=1

[answerhappygod]

This Is The Temperature Composition Diagram For A Mixture Of Liquid A And Liquid B At Constant Pressure 1atm T A P 1 1 (43.02 KiB) Viewed 46 times

This is the temperature-composition diagram for a mixture of liquid A and liquid B at constant pressure (1atm). T a₁ P=1 0.25 0.85 α B P=2 0 0.2 0.4 0.5 0.6 0.8 1 XA (1) Estimate the variance (F: number of degrees of freedom) at a, (when T=T₁) and az (when T=T₂) based on the phase rule (5) (2) The total mole of liquid A in mixture is 12 mol. At T-T₂, what is the amount (mole) of liquid A in B-rich phase (a phase)? What is the amount (mole) of liquid A in A-rich phase (3 phase)? (10%) T₁ T₂ a2
