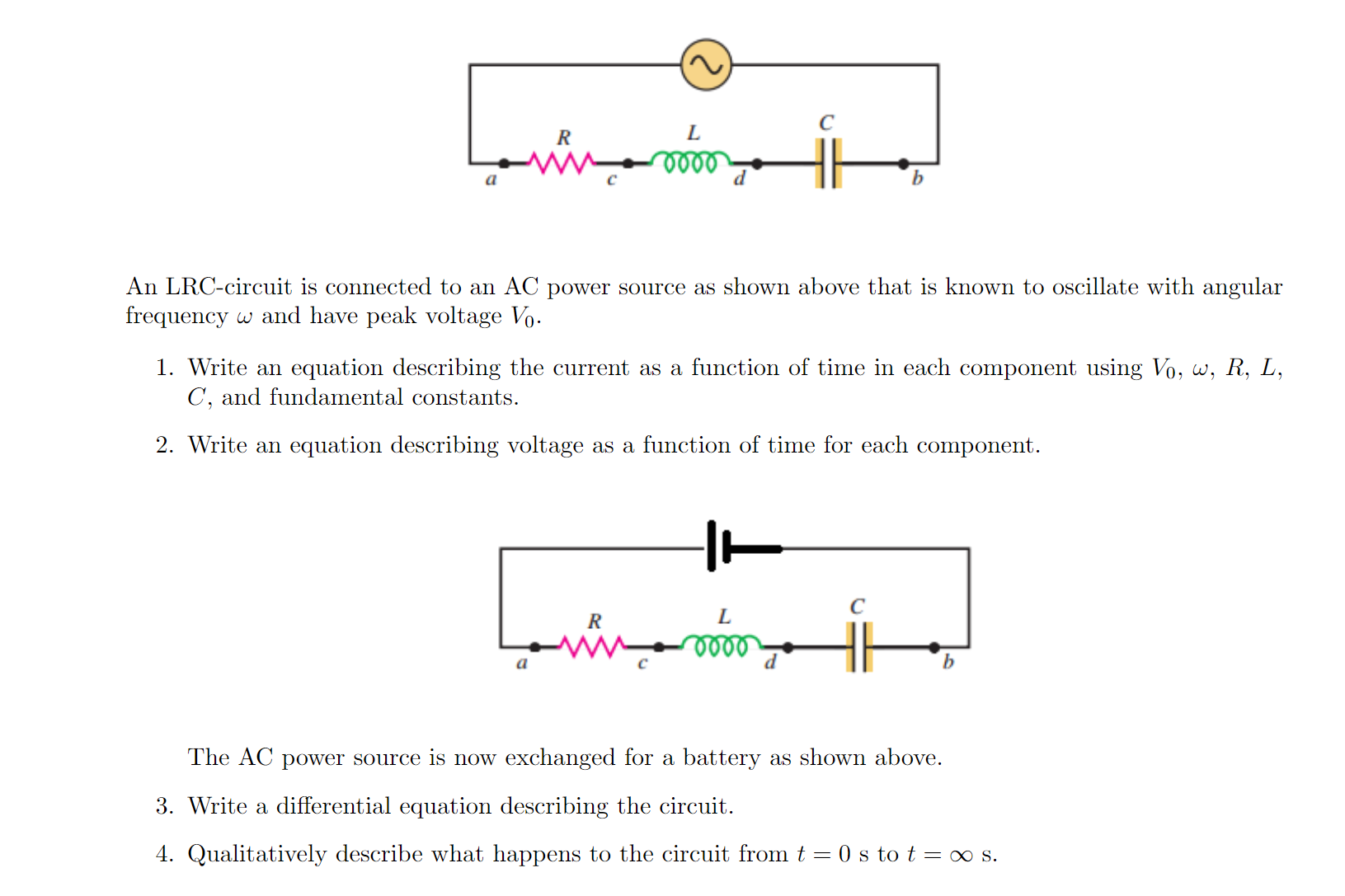

C R L oooo d b An LRC-circuit is connected to an AC power source as shown above that is known to oscillate with angular frequency w and have peak voltage Vo. 1. Write an equation describing the current as a function of time in each component using Vo, w, R, L, C, and fundamental constants. 2. Write an equation describing voltage as a function of time for each component. R L C b oooo a d The AC power source is now exchanged for a battery as shown above. 3. Write a differential equation describing the circuit. 4. Qualitatively describe what happens to the circuit from t = 0 s to t = ∞ s.
