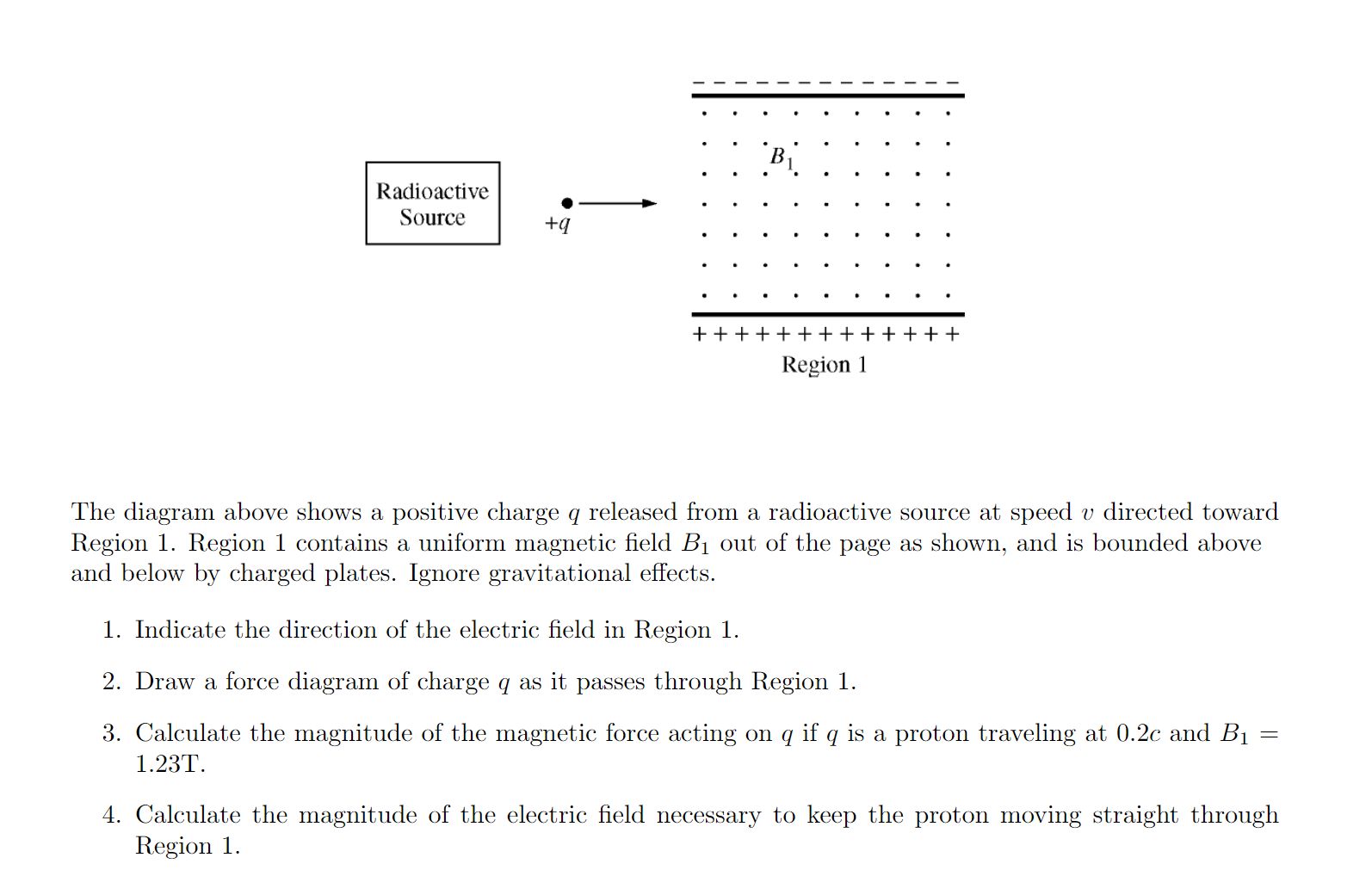

Radioactive Source +++++++++++++ Region 1 The diagram above shows a positive charge q released from a radioactive source at speed v directed toward Region 1. Region 1 contains a uniform magnetic field B₁ out of the page as shown, and is bounded above and below by charged plates. Ignore gravitational effects. 1. Indicate the direction of the electric field in Region 1. 2. Draw a force diagram of charge q as it passes through Region 1. = 3. Calculate the magnitude of the magnetic force acting on q if q is a proton traveling at 0.2c and B₁ 1.23T. 4. Calculate the magnitude of the electric field necessary to keep the proton moving straight through Region 1. +q
