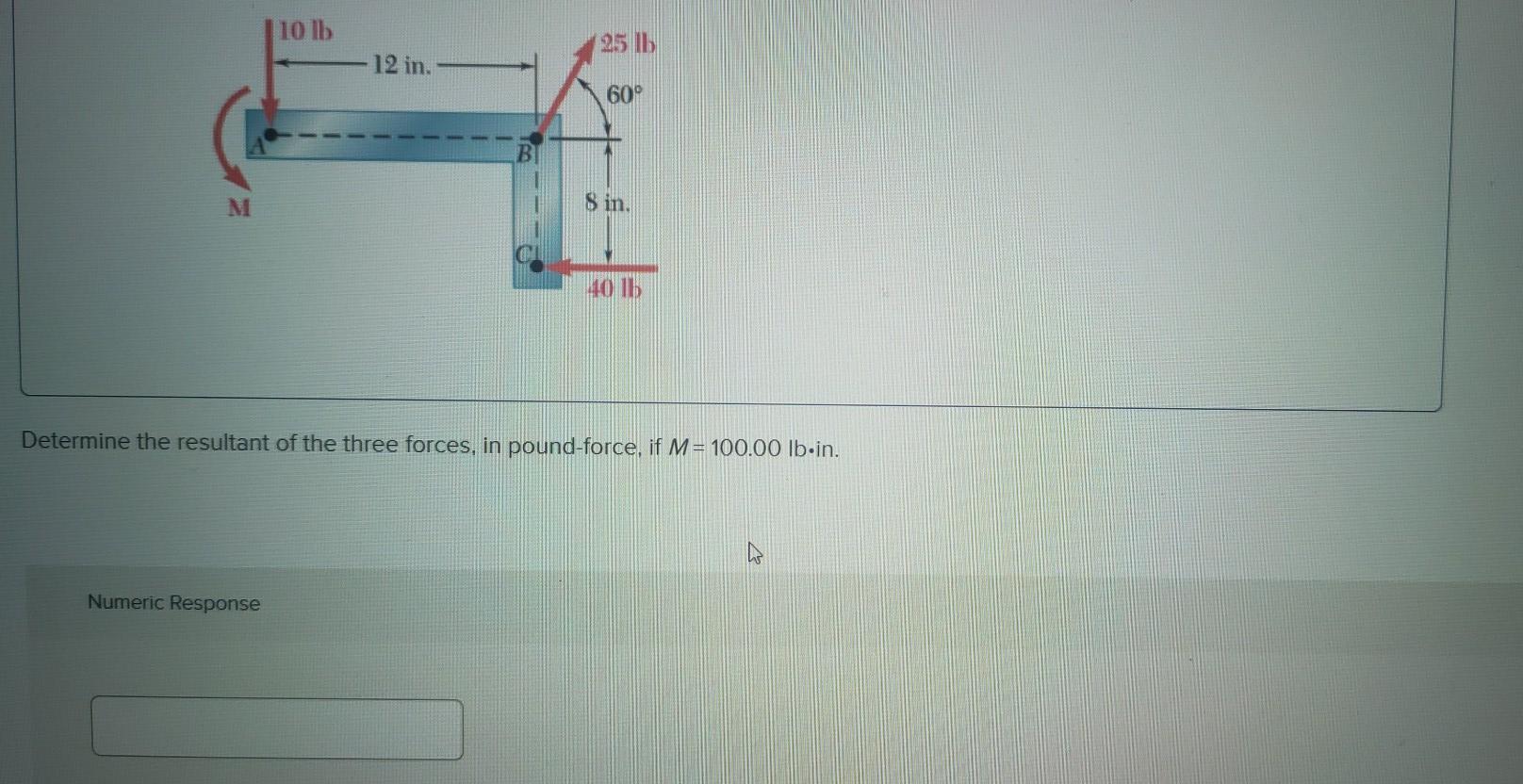

10 lb 12 in.- 25 lb 60⁰ 8 in. M 40 lb Determine the resultant of the three forces, in pound-force, if M = 100.00 lb.in. Numeric Response

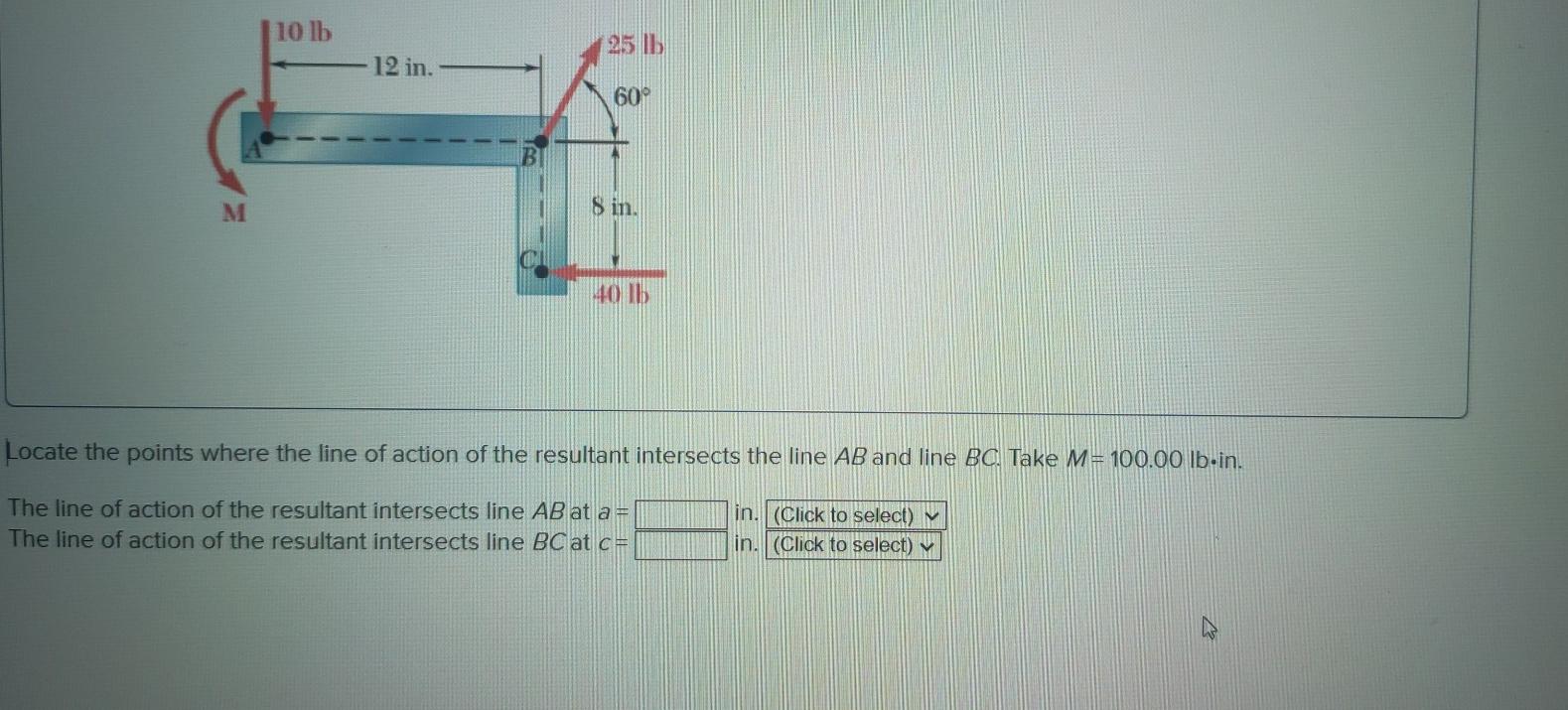

10 lb 12 in. 25 lb 60° 8 in. M 40 lb Locate the points where the line of action of the resultant intersects the line AB and line BC. Take M= 100.00 lb-in. The line of action of the resultant intersects line AB at a = The line of action of the resultant intersects line BC at c = in. (Click to select) in. (Click to select)
