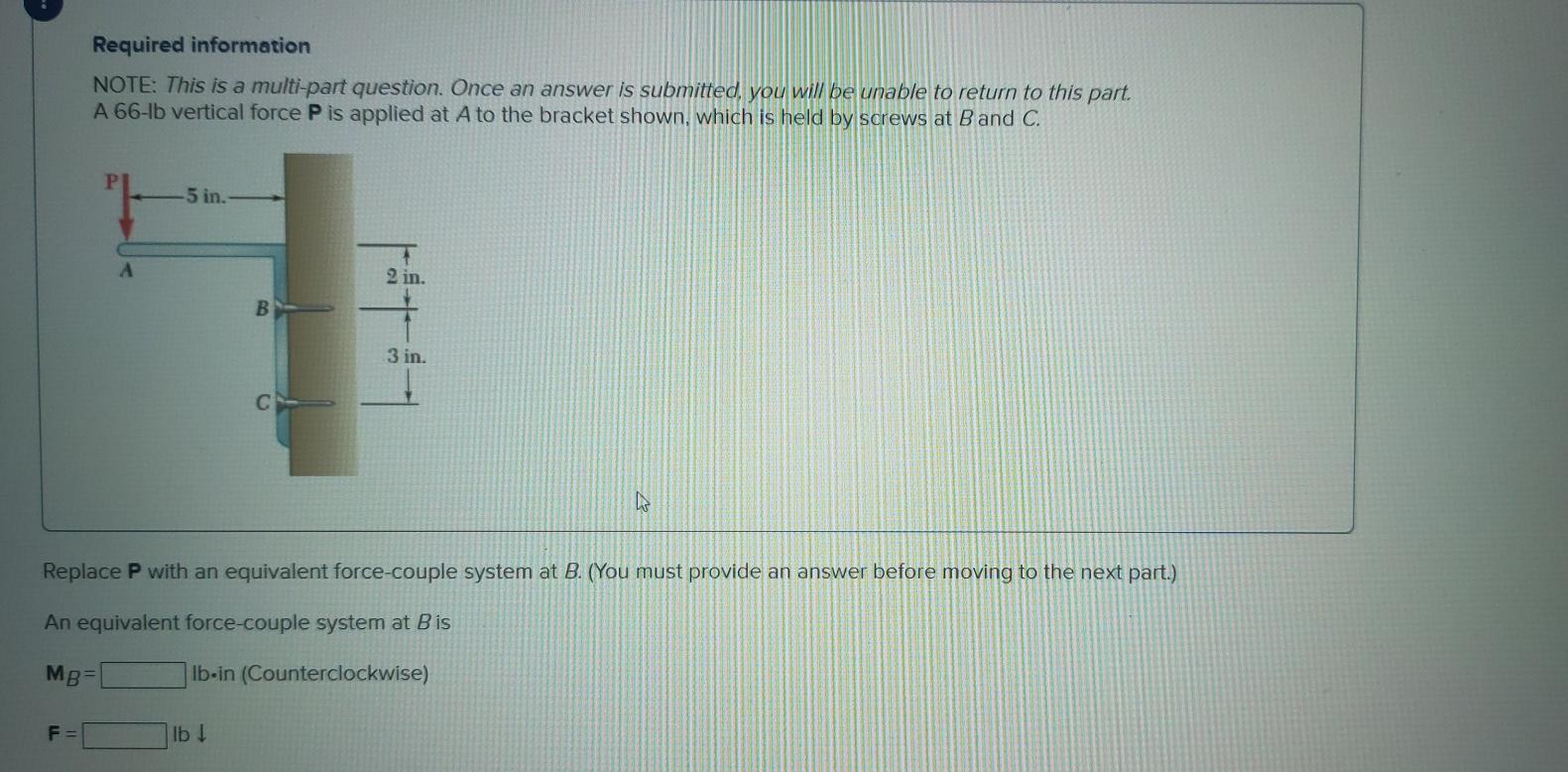

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A 66-lb vertical force P is applied at A to the bracket shown, which is held by screws at B and C. -5 in. 2 in. 3 in. C A Replace P with an equivalent force-couple system at B. (You must provide an answer before moving to the next part.) An equivalent force-couple system at Bis MB= Ib-in (Counterclockwise) F= lb ↓ B
