D Question 6 Consider the circuit given in the drawing. Use Kirchhoff's Rules to determine the current labeled through t

Post by answerhappygod »

D Question 6 Consider The Circuit Given In The Drawing Use Kirchhoff S Rules To Determine The Current Labeled Through T 1
D Question 6 Consider The Circuit Given In The Drawing Use Kirchhoff S Rules To Determine The Current Labeled Through T 1 (30.01 KiB) Viewed 47 times

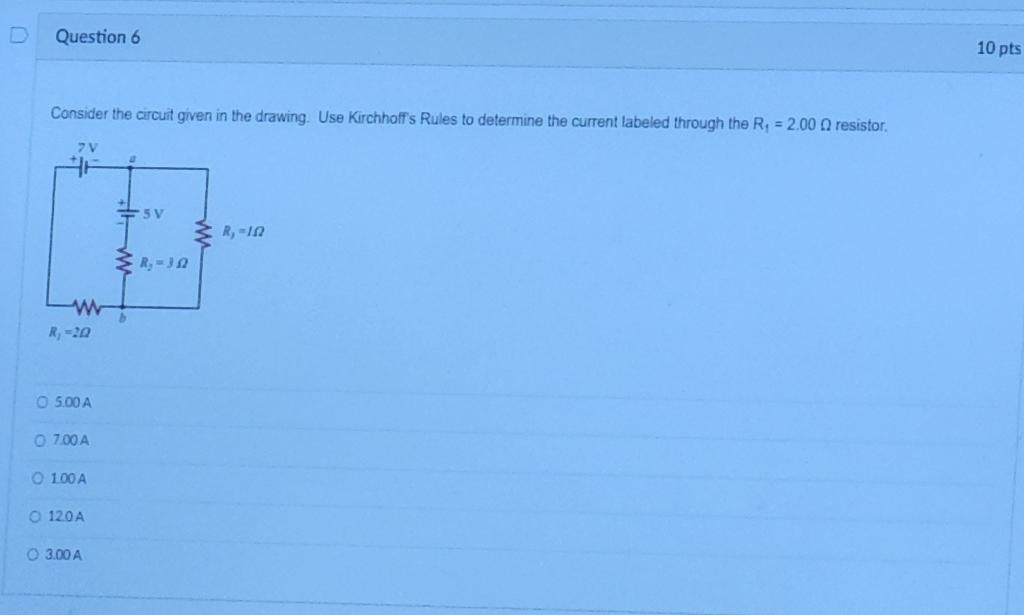

D Question 6 Consider the circuit given in the drawing. Use Kirchhoff's Rules to determine the current labeled through the R₁ = 2.000 resistor. 7V SV 3 R₁-10 R₂-352 www R₁-20 O 5.00 A O 7.00 A O 100 A O 120 A O 3.00 A www 10 pts
