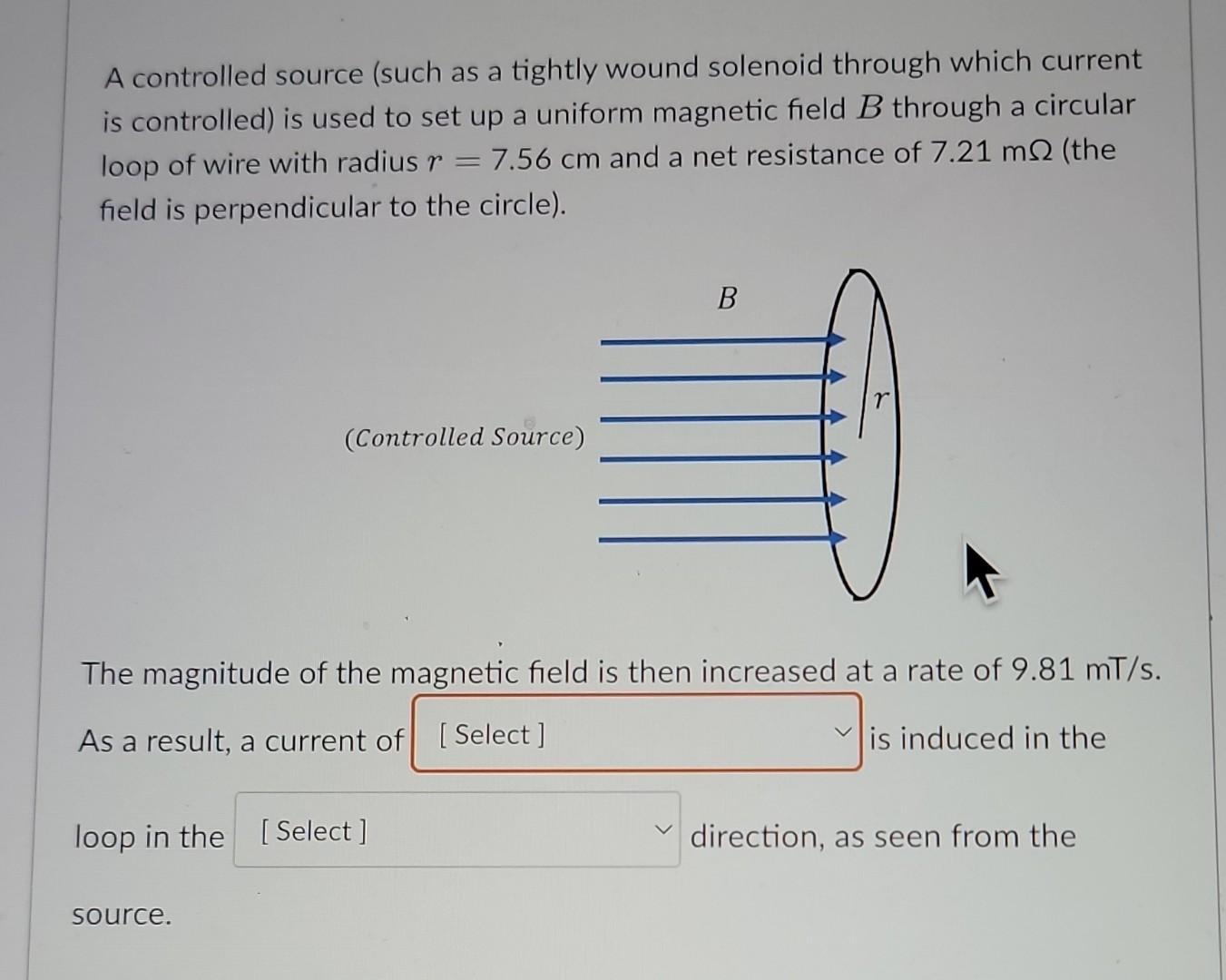

A controlled source (such as a tightly wound solenoid through which current is controlled) is used to set up a uniform magnetic field B through a circular loop of wire with radius r = 7.56 cm and a net resistance of 7.21 m2 (the field is perpendicular to the circle). B (Controlled Source) The magnitude of the magnetic field is then increased at a rate of 9.81 mT/s. As a result, a current of [Select] is induced in the loop in the [Select] direction, as seen from the source.
