(20%) Problem 4: A fence post of mass m = 8 kg supports a fence with three lengths of barbed wire. The bottom wire is a

[answerhappygod]

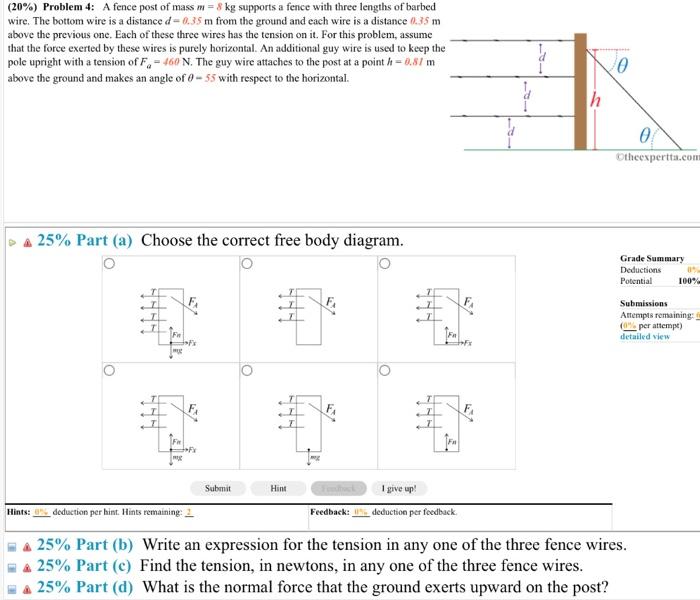

20 Problem 4 A Fence Post Of Mass M 8 Kg Supports A Fence With Three Lengths Of Barbed Wire The Bottom Wire Is A 1 (57.79 KiB) Viewed 52 times

(20%) Problem 4: A fence post of mass m = 8 kg supports a fence with three lengths of barbed wire. The bottom wire is a distance d-0.35 m from the ground and each wire is a distance 0.35 m above the previous one. Each of these three wires has the tension on it. For this problem, assume that the force exerted by these wires is purely horizontal. An additional guy wire is used to keep the pole upright with a tension of F= 460 N. The guy wire attaches to the post at a point h = 0.81 m above the ground and makes an angle of 0-55 with respect to the horizontal. 25% Part (a) Choose the correct free body diagram. Soft Fa JFx g Submit Hint Fondback I give up! Hints: deduction per hint. Hints remaining: 1 Feedback: deduction per feedback. & 25% Part (b) Write an expression for the tension in any one of the three fence wires. 25% Part (c) Find the tension, in newtons, in any one of the three fence wires. a 25% Part (d) What is the normal force that the ground exerts upward on the post? h 0 0 Otheexpertta.com Grade Summary 0% Deductions Potential 100% Submissions Attempts remaining: in (0% per attempt) detailed view
