(20%) Problem 2: A block having a mass of m= 17.5 kg is suspended via two cables as shown in the figure. The angles show

[answerhappygod]

20 Problem 2 A Block Having A Mass Of M 17 5 Kg Is Suspended Via Two Cables As Shown In The Figure The Angles Show 1 (52.82 KiB) Viewed 56 times

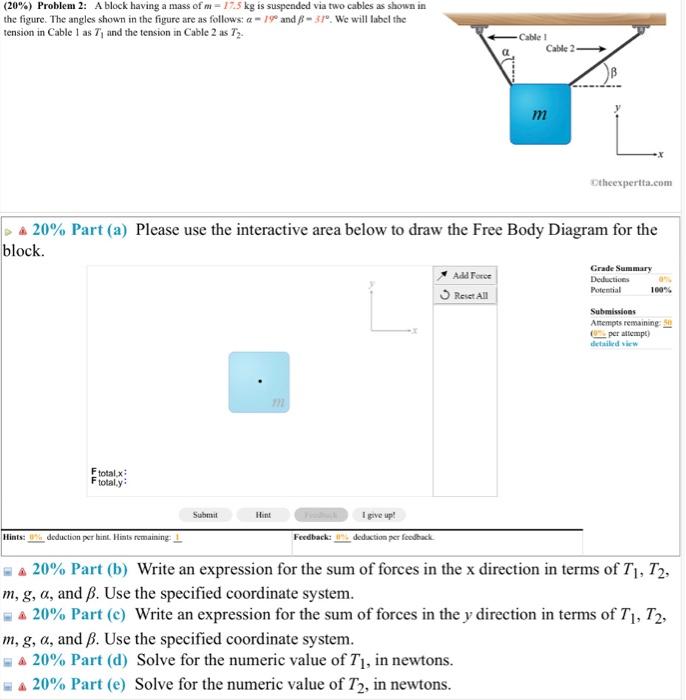

(20%) Problem 2: A block having a mass of m= 17.5 kg is suspended via two cables as shown in the figure. The angles shown in the figure are as follows: a 19 and 8-31º. We will label the tension in Cable 1 as 7, and the tension in Cable 2 as T₂. m Otheexpertta.com 20% Part (a) Please use the interactive area below to draw the Free Body Diagram for the block. Add Force Reset All Grade Summary Deductions Potential 100% Submissions Attempts remaining: 50 (0% per attempt) detailed view m Ftotal x Ftotaly Submit Hint I give up! Hints: deduction per hint. Hints remaining Feedback: deduction per feedback ▲ 20% Part (b) Write an expression for the sum of forces in the x direction in terms of T1, T2, m, g, a, and ß. Use the specified coordinate system. A 20% Part (c) Write an expression for the sum of forces in the y direction in terms of T1, T2, m, g, a, and ß. Use the specified coordinate system. 20% Part (d) Solve for the numeric value of T₁, in newtons. ia 20% Part (e) Solve for the numeric value of T2, in newtons. Cable 1 Cable 2-
