1.) The conveyor chain shown to the right is manufactured of 1040 cold drawn pins, and 102 cold drawn bushings and plate

[answerhappygod]

1 The Conveyor Chain Shown To The Right Is Manufactured Of 1040 Cold Drawn Pins And 102 Cold Drawn Bushings And Plate 1 (32.25 KiB) Viewed 36 times

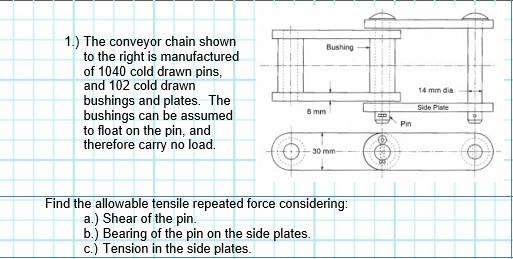

1.) The conveyor chain shown to the right is manufactured of 1040 cold drawn pins, and 102 cold drawn bushings and plates. The bushings can be assumed to float on the pin, and therefore carry no load. 30 mm- Find the allowable tensile repeated force considering: a.) Shear of the pin. b.) Bearing of the pin on the side plates. c.) Tension in the side plates. Bushing 6 mm (0) Pin 14 mm dia Side Plate
