2. Complete the table below. For all values a reason KCL, KVL, Ohms law or calculations must be shown for full marks. (T

Post by answerhappygod »

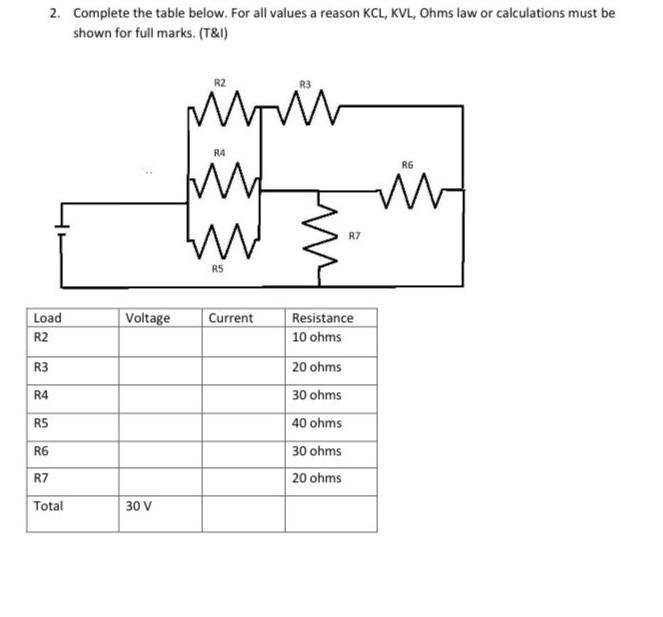

2 Complete The Table Below For All Values A Reason Kcl Kvl Ohms Law Or Calculations Must Be Shown For Full Marks T 1
2 Complete The Table Below For All Values A Reason Kcl Kvl Ohms Law Or Calculations Must Be Shown For Full Marks T 1 (29.59 KiB) Viewed 30 times
2. Complete the table below. For all values a reason KCL, KVL, Ohms law or calculations must be shown for full marks. (T&I) R4 R6 M www R5 Current Load R2 R3 R4 R5 R6 R7 Total Voltage 30 V R7 Resistance 10 ohms 20 ohms 30 ohms 40 ohms 30 ohms 20 ohms
