Problem 1 C L 0000 An LRC-circuit is connected to an AC power source as shown above that is known to oscillate with angu

Post by answerhappygod »

Problem 1 C L 0000 An Lrc Circuit Is Connected To An Ac Power Source As Shown Above That Is Known To Oscillate With Angu 1
Problem 1 C L 0000 An Lrc Circuit Is Connected To An Ac Power Source As Shown Above That Is Known To Oscillate With Angu 1 (35.29 KiB) Viewed 30 times

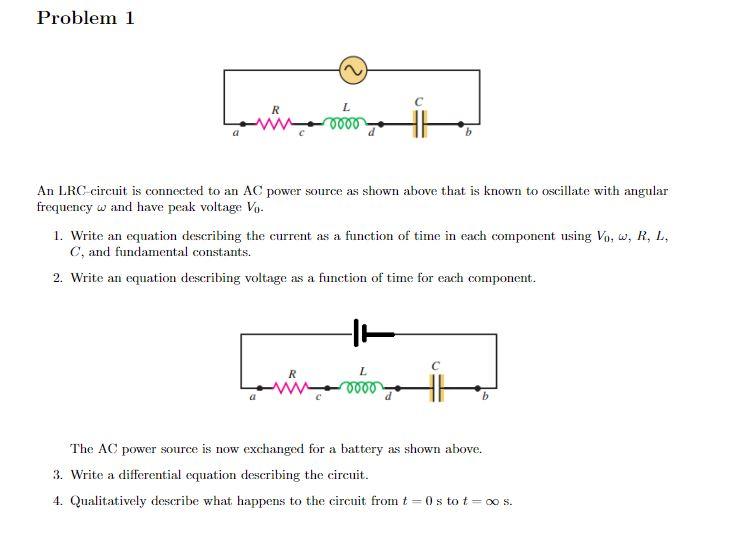

Problem 1 C L 0000 An LRC-circuit is connected to an AC power source as shown above that is known to oscillate with angular frequency w and have peak voltage Vo 1. Write an equation describing the current as a function of time in each component using Vo, w, R, L, C, and fundamental constants. 2. Write an equation describing voltage as a function of time for each component. L 0000 a The AC power source is now exchanged for a battery as shown above. 3. Write a differential equation describing the circuit. 4. Qualitatively describe what happens to the circuit from t=0 s to t = ∞0 s.
