2) The circuit shown is constructed with a switch that can connect a capacitor to either a battery and R, or resistors R

[answerhappygod]

2 The Circuit Shown Is Constructed With A Switch That Can Connect A Capacitor To Either A Battery And R Or Resistors R 1 (37.69 KiB) Viewed 32 times

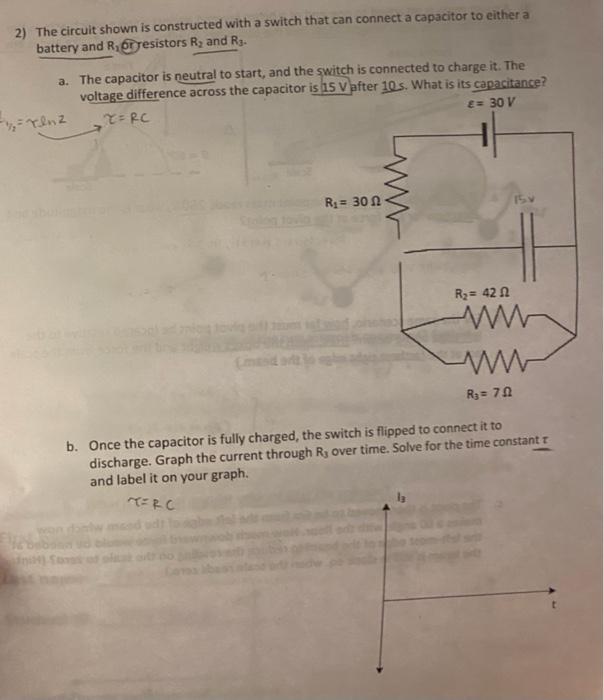

2) The circuit shown is constructed with a switch that can connect a capacitor to either a battery and R, or resistors R₂ and Rs. a. The capacitor is neutral to start, and the switch is connected to charge it. The voltage difference across the capacitor is 15 V after 10s. What is its capacitance? x=RC E = 30 V R₁ = 300 R₂ = 420 ww ww R₂ = 70 b. Once the capacitor is fully charged, the switch is flipped to connect it to discharge. Graph the current through R, over time. Solve for the time constant r and label it on your graph. TERC 4) Sons of oftal -1 = XlnZ L ww 15.v
