23.49 - Transformers 'H A multipurpose transformer has a secondary coil with several points at which a voltage can be ex

[answerhappygod]

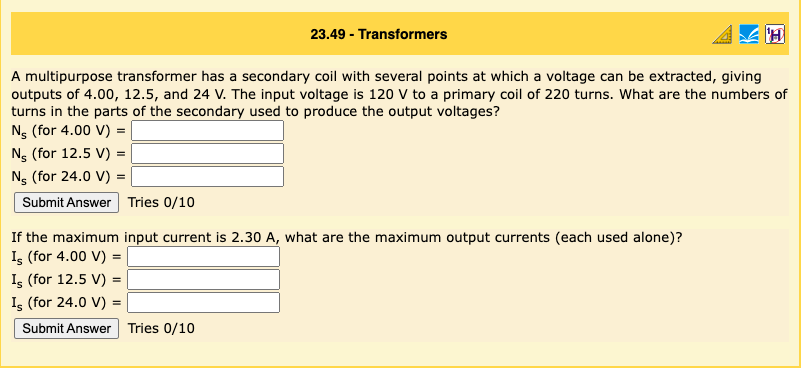

23 49 Transformers H A Multipurpose Transformer Has A Secondary Coil With Several Points At Which A Voltage Can Be Ex 1 (41.64 KiB) Viewed 36 times

23.49 - Transformers 'H A multipurpose transformer has a secondary coil with several points at which a voltage can be extracted, giving outputs of 4.00, 12.5, and 24 V. The input voltage is 120 V to a primary coil of 220 turns. What are the numbers of turns in the parts of the secondary used to produce the output voltages? Ng (for 4.00 V) = Ng (for 12.5 V) = Ns (for 24.0 V) = Submit Answer Tries 0/10 If the maximum input current is 2.30 A, what are the maximum output currents (each used alone)? Is (for 4.00 V) = Is (for 12.5 V) = Is (for 24.0 V) = Submit Answer Tries 0/10
