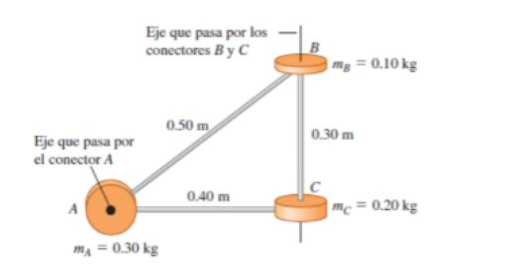

Consider each disk in the figure as if it were a point particle
with all its mass concentrated in the center of the disk, suppose
that these are joined by thin rods of negligible mass:
What moment of inertia does this body have about an axis that
passes through point A, perpendicular to the plane of the
drawing?
What moment of inertia does it have about an axis through points
B and C?
Consider Each Disk In The Figure As If It Were A Point Particle With All Its Mass Concentrated In The Center Of The Disk 1 (78.56 KiB) Viewed 33 times
Eje que pasa por el conector A Eje que pasa por los conectores By C 0.50 m mA = 0.30 kg 0,40 m mg = 0.10 kg mc = 0.20 kg 0.30 m
