Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in the figure below, the pressure

Post by answerhappygod »

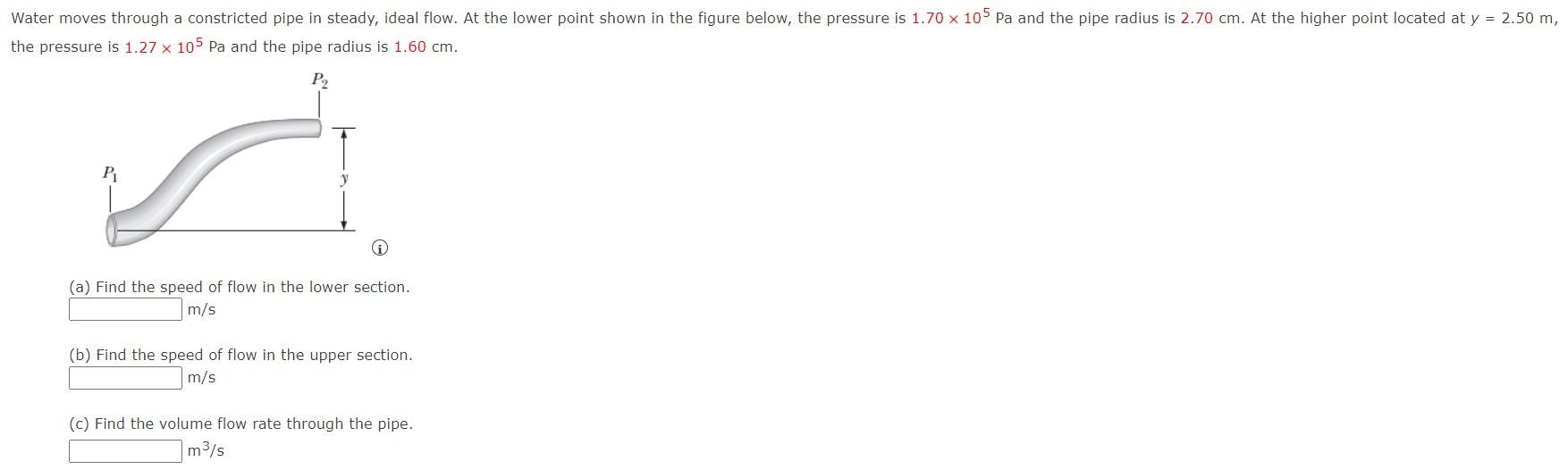

Water Moves Through A Constricted Pipe In Steady Ideal Flow At The Lower Point Shown In The Figure Below The Pressure 1
Water Moves Through A Constricted Pipe In Steady Ideal Flow At The Lower Point Shown In The Figure Below The Pressure 1 (46.29 KiB) Viewed 31 times
Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in the figure below, the pressure is 1.70 x 105 Pa and the pipe radius is 2.70 cm. At the higher point located at y = 2.50 m, the pressure is 1.27 x 105 Pa and the pipe radius is 1.60 cm. P₁ (a) Find the speed of flow in the lower section. m/s (b) Find the speed of flow in the upper section. m/s (c) Find the volume flow rate through the pipe. m³/s
