Four Capacitors Are Arranged In The Circuit Shown In The Figure The Capacitors Have The Values C 24 5 Uf C 45 5 1 (1.59 MiB) Viewed 27 times

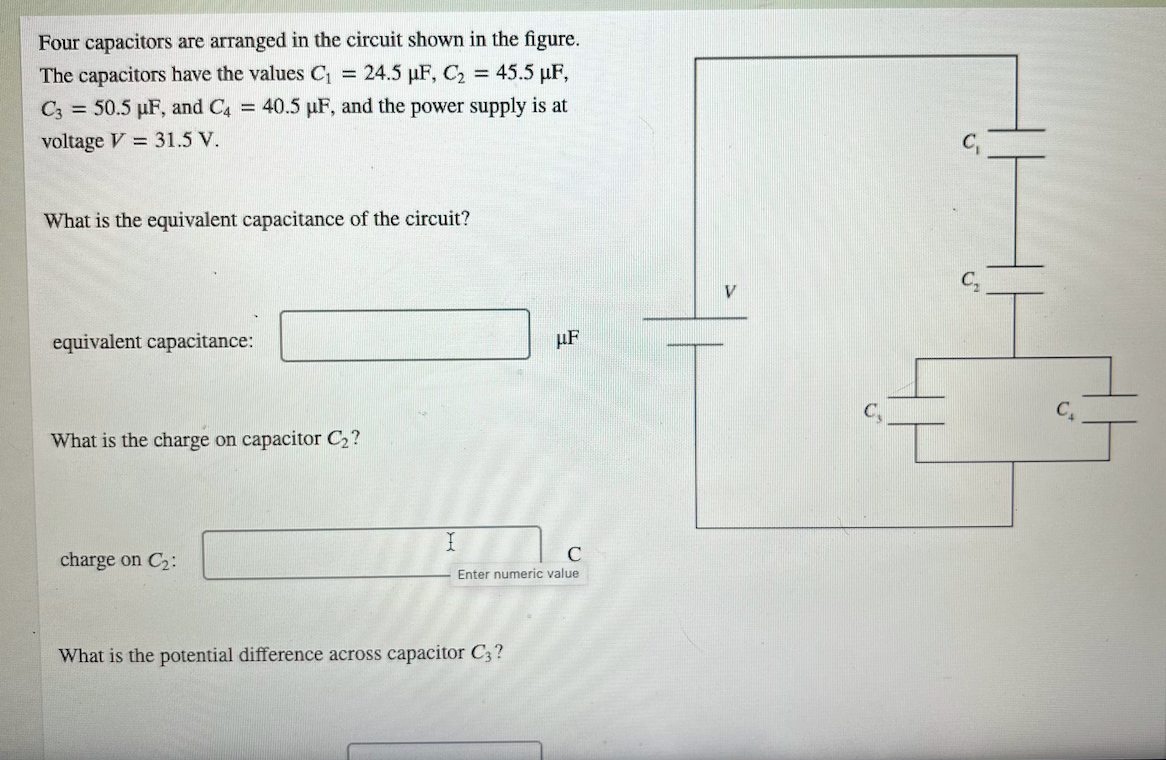

Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C₁ = 24.5 µF, C₂ = 45.5 µF, C3 = 50.5 µF, and C4 = 40.5 µF, and the power supply is at voltage V = 31.5 V. What is the equivalent capacitance of the circuit? equivalent capacitance: What is the charge on capacitor C₂? charge on C₂: What is the potential difference across capacitor C3? μF I Enter numeric value V C₁ C₁
What is the charge on capacitor C₂? charge on C₂: What is the potential difference across capacitor C3? potential difference across C3: What is the potential energy stored in capacitor C4? potential energy stored in C4: C V J
