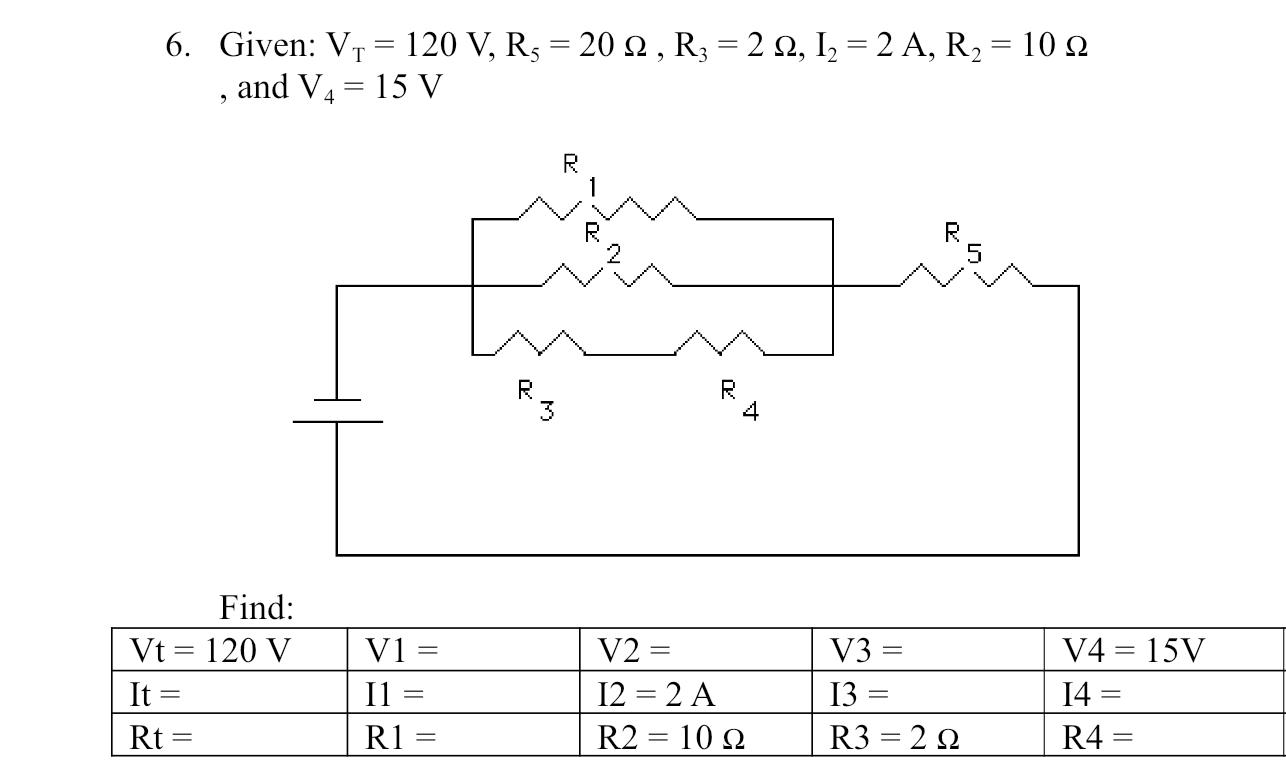

T 6. Given: V₁ = 120 V, Rs = 20 2, R3 = 2 2, I₂ = 2 A, R₂ = 10 2 , and V₁ = 15 V R Find: Vt = 120 V It = Rt = V1 = I1 =
