[3 points] Problem 1. Two wheels, each of mass m = 100 g and radius R = 2 cm, are connected by a bar of length 7 = 10 cm

[answerhappygod]

3 Points Problem 1 Two Wheels Each Of Mass M 100 G And Radius R 2 Cm Are Connected By A Bar Of Length 7 10 Cm 1 (52.13 KiB) Viewed 14 times

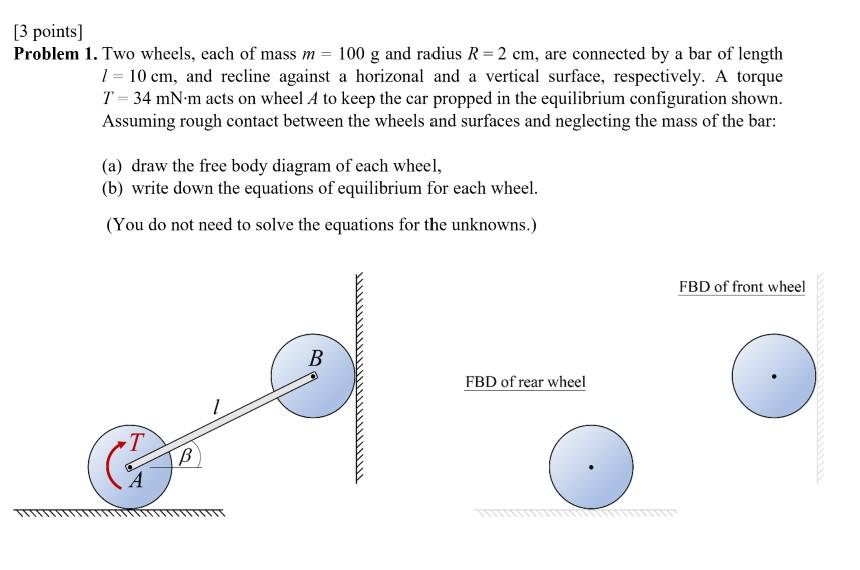

[3 points] Problem 1. Two wheels, each of mass m = 100 g and radius R = 2 cm, are connected by a bar of length 7 = 10 cm, and recline against a horizonal and a vertical surface, respectively. A torque T = 34 mN-m acts on wheel A to keep the car propped in the equilibrium configuration shown. Assuming rough contact between the wheels and surfaces and neglecting the mass of the bar: (a) draw the free body diagram of each wheel, (b) write down the equations of equilibrium for each wheel. (You do not need to solve the equations for the unknowns.) FBD of front wheel B T G B FBD of rear wheel
